Stormbrace Single Carport - 5.5m x 3m

Luxi Living

Frame Colour

Grey

White

Panel Colour

Dark Grey

Quantity

[{"id":52058433913128,"title":"Grey \/ Dark Grey","option1":"Grey","option2":"Dark Grey","option3":null,"sku":"CS27199-7","requires_shipping":true,"taxable":true,"featured_image":{"id":49291177853224,"product_id":10332432728360,"position":1,"created_at":"2025-03-03T12:25:06+11:00","updated_at":"2025-05-06T10:57:26+10:00","alt":null,"width":1300,"height":1000,"src":"\/\/luxiliving.com.au\/cdn\/shop\/files\/carport.webp?v=1746493046","variant_ids":[52058433913128]},"available":true,"name":"Stormbrace Single Carport - 5.5m x 3m - Grey \/ Dark Grey","public_title":"Grey \/ Dark Grey","options":["Grey","Dark Grey"],"price":359999,"weight":68311,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":41099832820008,"position":1,"preview_image":{"aspect_ratio":1.3,"height":1000,"width":1300,"src":"\/\/luxiliving.com.au\/cdn\/shop\/files\/carport.webp?v=1746493046"}},"requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[{"position":1,"price":359999}],"price":359999,"compare_at_price":359999,"per_delivery_price":359999,"selling_plan_id":691269730600,"selling_plan_group_id":"8e05b5983f1b15725dfaef29ddacb893a324c372"}],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":52058433945896,"title":"White \/ Dark Grey","option1":"White","option2":"Dark Grey","option3":null,"sku":"CS27200-7","requires_shipping":true,"taxable":true,"featured_image":{"id":49291177820456,"product_id":10332432728360,"position":7,"created_at":"2025-03-03T12:25:06+11:00","updated_at":"2025-03-03T12:25:07+11:00","alt":null,"width":1300,"height":1000,"src":"\/\/luxiliving.com.au\/cdn\/shop\/files\/carport_white.webp?v=1740965107","variant_ids":[52058433945896]},"available":true,"name":"Stormbrace Single Carport - 5.5m x 3m - White \/ Dark Grey","public_title":"White \/ Dark Grey","options":["White","Dark Grey"],"price":359999,"weight":68311,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":41099832852776,"position":7,"preview_image":{"aspect_ratio":1.3,"height":1000,"width":1300,"src":"\/\/luxiliving.com.au\/cdn\/shop\/files\/carport_white.webp?v=1740965107"}},"requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[{"position":1,"price":359999}],"price":359999,"compare_at_price":359999,"per_delivery_price":359999,"selling_plan_id":691269730600,"selling_plan_group_id":"8e05b5983f1b15725dfaef29ddacb893a324c372"}],"quantity_rule":{"min":1,"max":null,"increment":1}}]

{"id":52058433913128,"title":"Grey \/ Dark Grey","option1":"Grey","option2":"Dark Grey","option3":null,"sku":"CS27199-7","requires_shipping":true,"taxable":true,"featured_image":{"id":49291177853224,"product_id":10332432728360,"position":1,"created_at":"2025-03-03T12:25:06+11:00","updated_at":"2025-05-06T10:57:26+10:00","alt":null,"width":1300,"height":1000,"src":"\/\/luxiliving.com.au\/cdn\/shop\/files\/carport.webp?v=1746493046","variant_ids":[52058433913128]},"available":true,"name":"Stormbrace Single Carport - 5.5m x 3m - Grey \/ Dark Grey","public_title":"Grey \/ Dark Grey","options":["Grey","Dark Grey"],"price":359999,"weight":68311,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"featured_media":{"alt":null,"id":41099832820008,"position":1,"preview_image":{"aspect_ratio":1.3,"height":1000,"width":1300,"src":"\/\/luxiliving.com.au\/cdn\/shop\/files\/carport.webp?v=1746493046"}},"requires_selling_plan":false,"selling_plan_allocations":[{"price_adjustments":[{"position":1,"price":359999}],"price":359999,"compare_at_price":359999,"per_delivery_price":359999,"selling_plan_id":691269730600,"selling_plan_group_id":"8e05b5983f1b15725dfaef29ddacb893a324c372"}],"quantity_rule":{"min":1,"max":null,"increment":1}}

Easier Parking and Access

Using a two-post cantilever design, both support posts sit on one side, leaving the opposite side open for easier parking, door opening and access around the vehicle.

Two-Post Cantilever Structure

6063-T5 aluminium, cantilever arm connections and secure base-plate fixing work together to provide stable support for the two-post structure.

Parking outside can leave your vehicle exposed to strong sun, rain and changing weather. This cantilever carport creates a permanent covered parking space without adding posts along the outer side of your vehicle.

Polycarbonate roof panels provide overhead protection from sun and rain, while the integrated gutter helps channel rainwater away from the covered area.

Designed for everyday outdoor use, the complete carport is backed by a 10-year warranty.

Features:

Two-Post Cantilever Design: Keeps the outer side clear for easier vehicle access.
2 mm Solid Polycarbonate Roof: Provides overhead protection from sun and rain.
Integrated Rain Gutter: Helps direct rainwater away from the covered area.
Low-Maintenance Materials: Aluminium framing and polycarbonate roof panels require minimal routine maintenance.
Pre-Drilled Fixing Points: Pre-drilled fixing points help simplify alignment and installation.

Installation Note: Carport base plates are designed to be used when installing a carport onto a concrete floor with a minimum thickness of 100 mm. If your floor does not meet this requirement, please refer to the installation manual for further instructions.

Specifications:

Frame

Frame Material: Powder-Coated 6063-T5 Aluminium
Frame Colour: Grey / White

Panel

Panel Material: 2 mm SABIC® Polycarbonate Panels
Panel Colour: Dark Grey

Performance

Wind Resistance: 120 km/h
Snow Load: 0.2 kN/m² (approx. 100 mm snow depth)

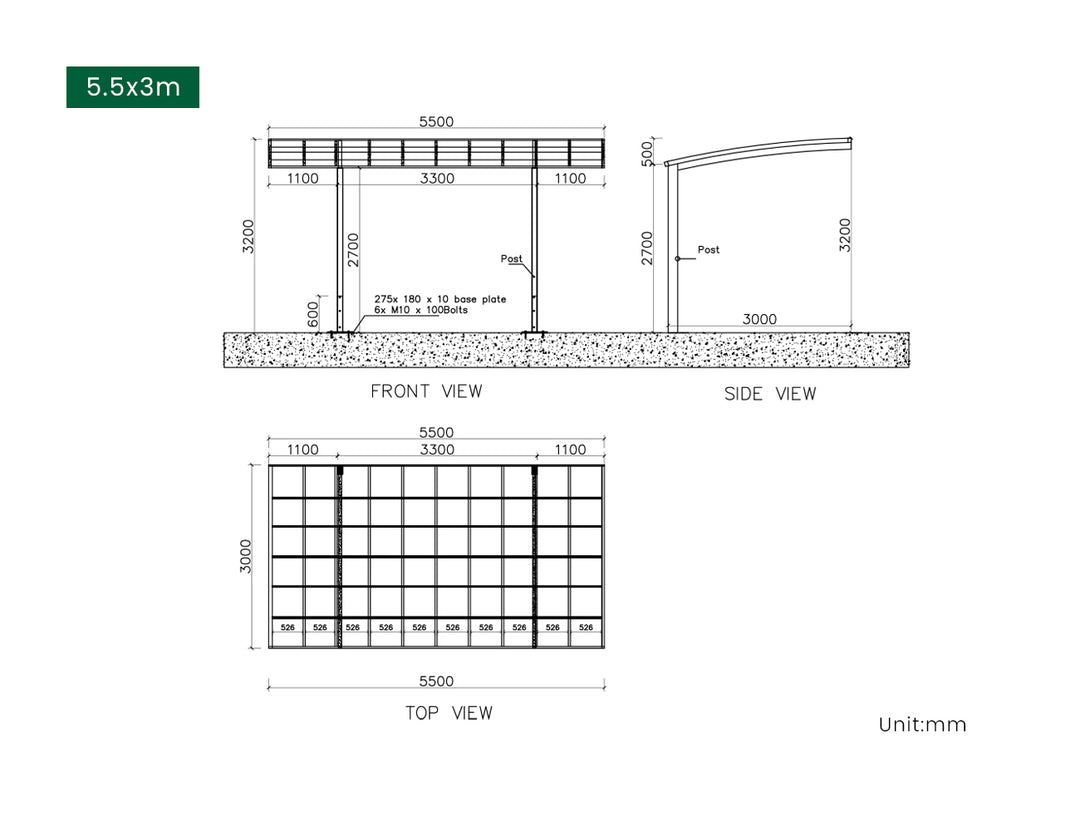

Product Dimensions

With Base Plates: 5500 × 3000 × 3200 mm; Post Height: 2700 mm
Embedded Installation: 5500 × 3000 × 2700 mm; Post Height: 2200 mm
Post: 156 × 86.5 × 2.5 - 3.5 mm
Roof Beam: 110 × 60 × 2 mm
Back Gutter Tube: 70 × 70 × 1.6 mm
Packaging Material: Carton

Warranty:

10 years on Aluminium Frame
10 years on Polycarbonate Roof Panels

Package Contents:

1 x Cantilever Carport - 5500 × 3000 mm
1 x Instruction Manual

Click Here to Download Instruction Manual

Dispatch & Delivery

Quick Dispatch:
In-stock items are processed and dispatched within 48 hours of payment confirmation (excluding weekends and public holidays).
Estimated Delivery Times for In-Stock Items:
Metro Areas: 5–10 business days.
Regional Areas: 7–14 business days.
Handling Special Items:
For bulky or heavy items, please ensure someone is available upon delivery to assist with unloading.

Returns

We are committed to your satisfaction. We offer a full refund (including shipping) under the following conditions:

Defective Items:
If the item is found to be defective and cannot be repaired or replaced.
Incorrect Descriptions:
If the item does not match the description provided on our website.

For full details, please learn more about our Return and Refund Policy.

Need Assistance?

Live Chat: Get in touch with our team directly via live chat.
Email: support@luxiliving.com.au

Pickup Melbourne Showroom – Free

Free In-Store Collection:
Collect your order for free at our Melbourne showroom. Please bring your confirmation email when you come to collect your order. Our team will contact you once your goods are ready.
Pickup Location:
131-133 Keys Road
Moorabbin VIC 3189
Australia

We appreciate your trust in Luxi Living and are dedicated to providing a seamless shipping and returns experience throughout Australia!

FAQs

For base-plate installation, the carport requires a concrete surface at least 100 mm thick. If your site does not meet this requirement, refer to the installation manual for alternative installation instructions.

The carport comes with pre-drilled fixing points and an instruction manual. Installation requires accurate positioning and secure fixing to the foundation, so professional installation may be preferable if you are not experienced with this type of project.

Yes. The carport supports both base-plate and embedded installation. The final post height differs depending on the installation method, so check the product dimensions and installation manual before starting.
