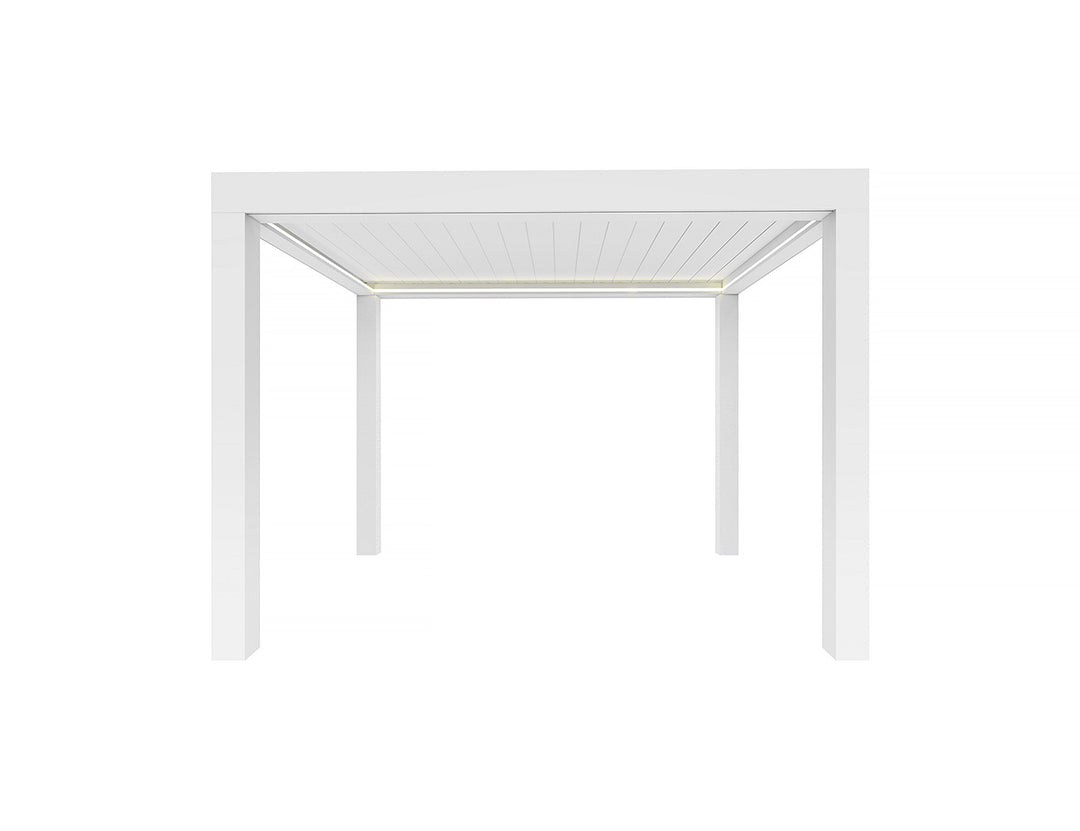

Mediterranean-SKY Motorised Freestanding Retractable Louvre Roof System
SKU: PO23648-9
Redefine your outdoor living with the Mediterranean-SKY Motorised Freestanding Retractable Louvre Roof System, a sleek, contemporary solution crafted for year-round comfort and seamless control.

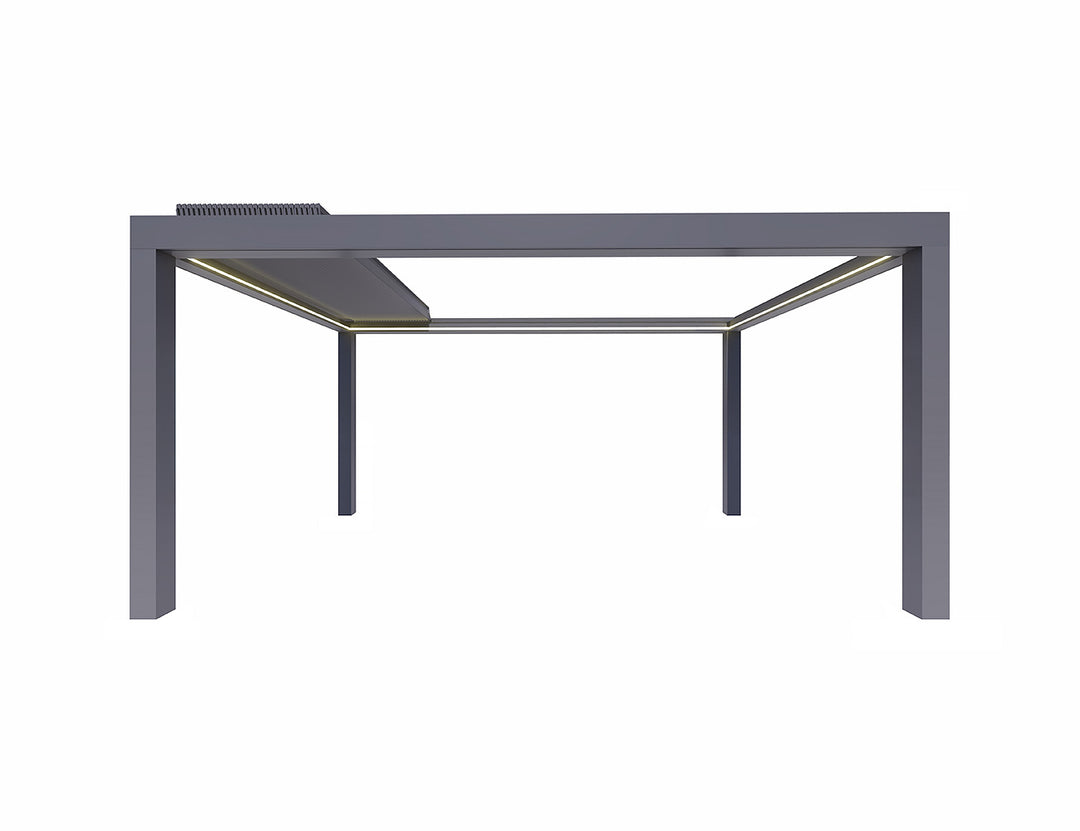

Precision-engineered from aluminium alloy, the Mediterranean-SKY features clean, minimalist lines that complement modern architecture. Its fully retractable, motorised louvre blades open your space to the sky or close it off for complete shelter and shade, all at the touch of a button.
The slimline blades maintain a refined profile while offering exceptional durability, with a load-bearing capacity of 120kg/㎡ and a wide rotation angle of approximately 170°, giving you precise control over airflow, light, and temperature.
RGB Strip lights on the surrounding Gutters add a sophisticated glow after dark, with customisable illumination to suit any mood or occasion. Two dedicated remote controls, one for lighting, one for louvre movement, provide smooth operation. The blades move in unison for a polished, cohesive experience.
Elegant, robust, and built to last, the Mediterranean-SKY pergola transforms outdoor spaces into luxurious, functional sanctuaries, where style meets performance in every season.
Key Features:
- Motorised louvre roof system for effortless open/close control
- Dual remote controls – one for lighting, one for louvre adjustment
- RGB Strip lights ntegrated in the surrounding Gutters for ambient lighting
- Max blade span 4m with approx. 170° rotation range
- Robust load-bearing capacity – up to 120kg/㎡
- Clean, modern look with slim-profile louvre blades

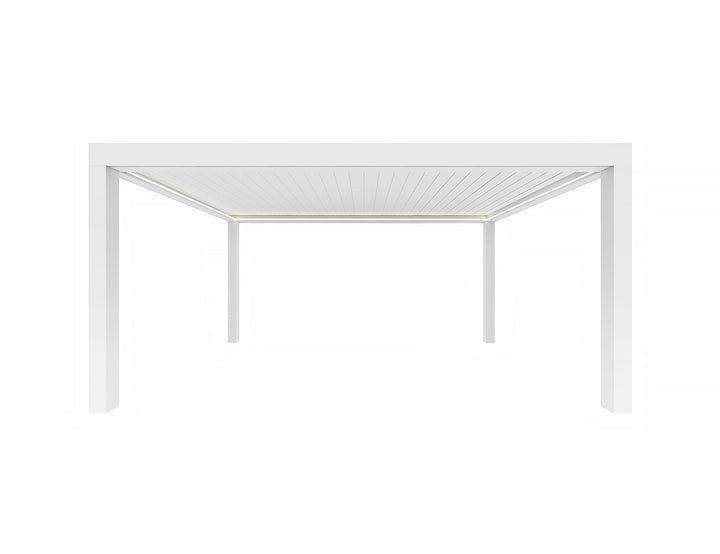

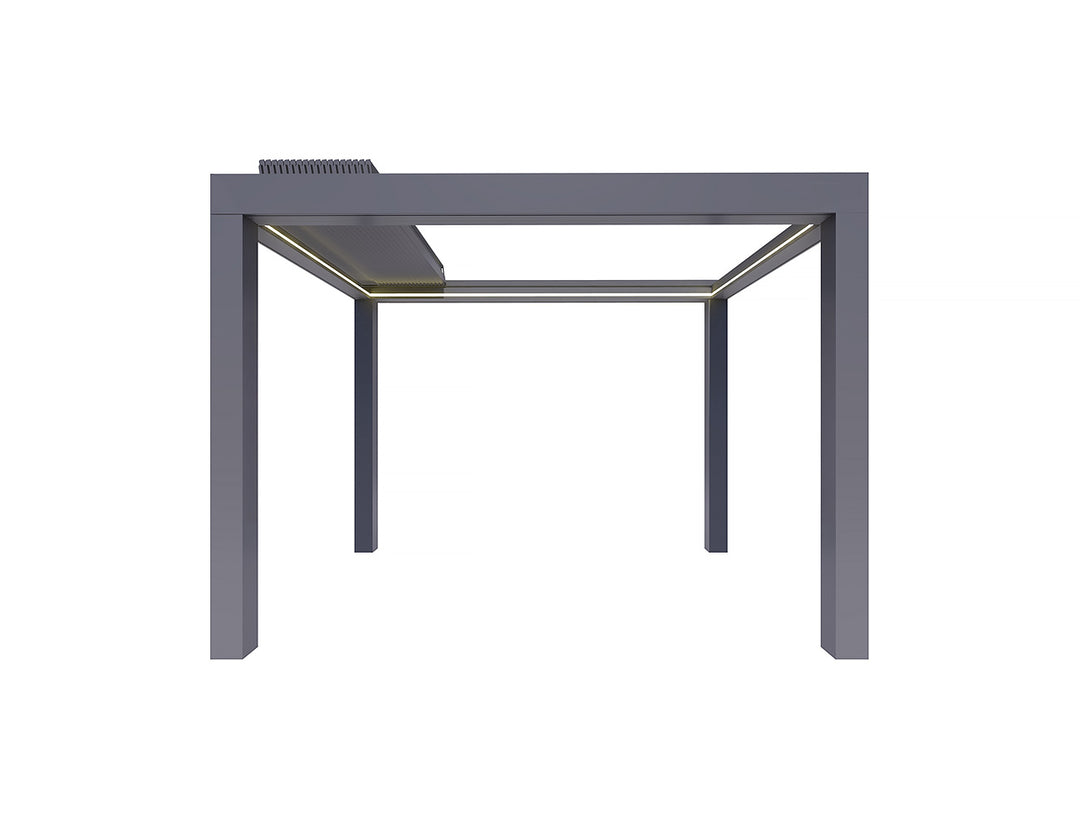

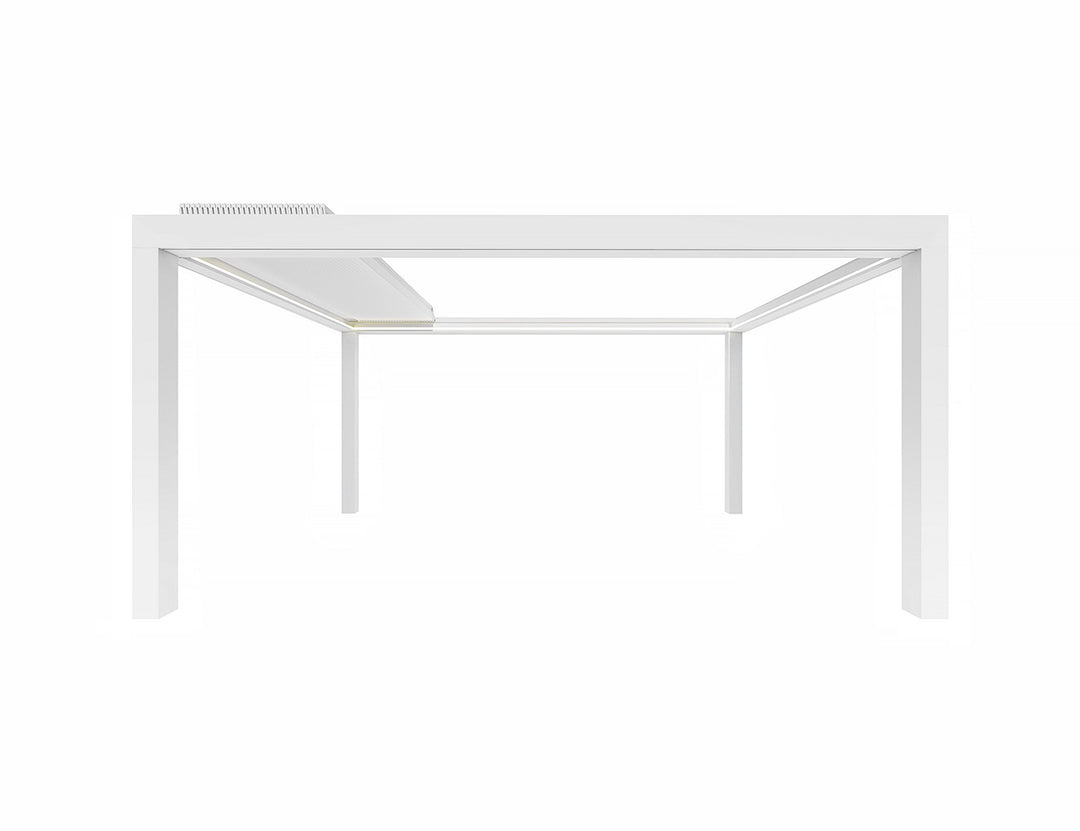

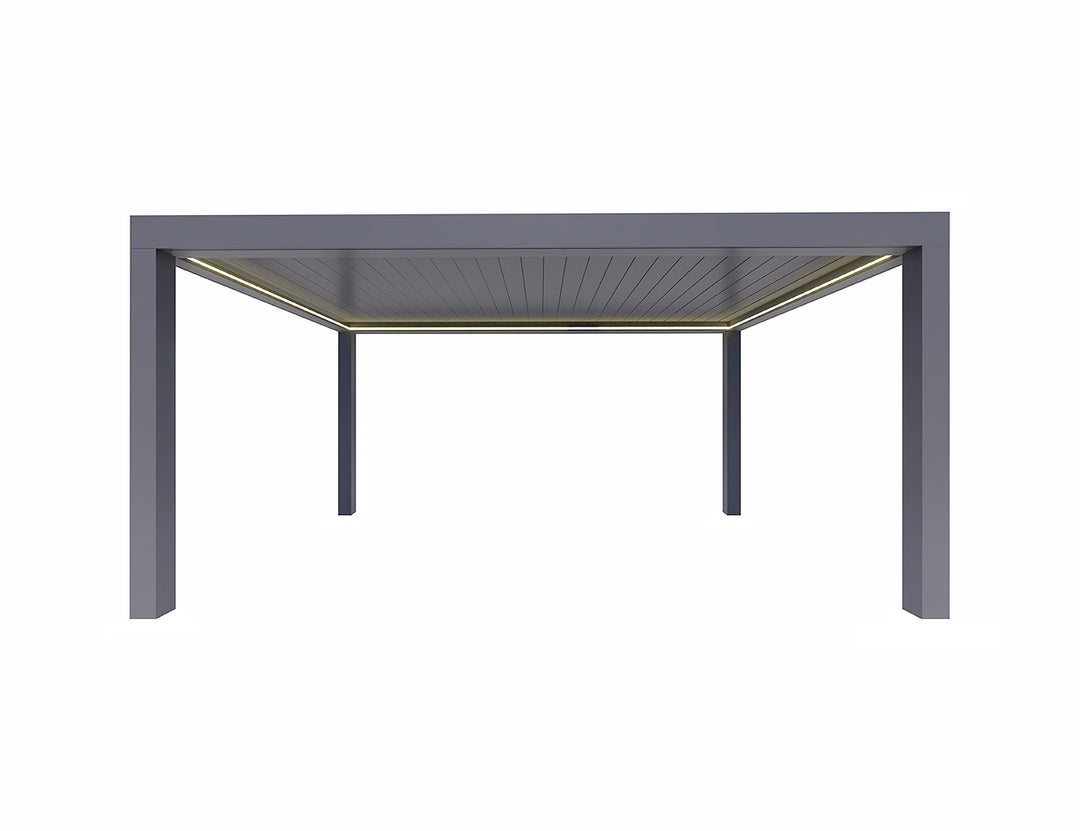

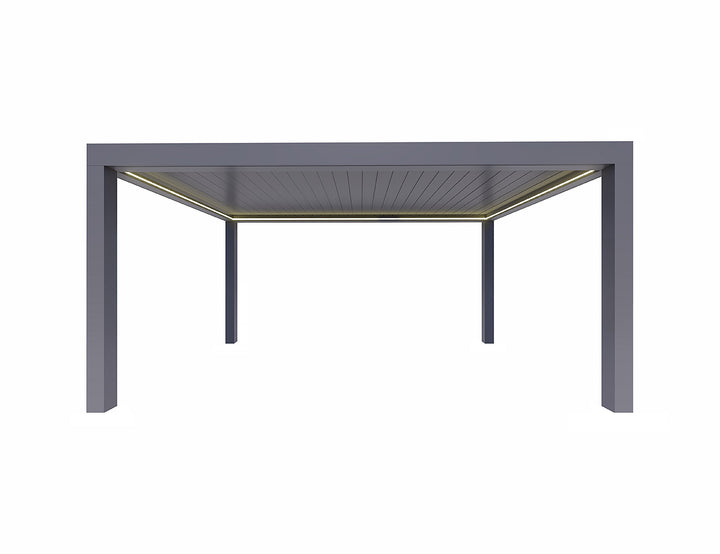

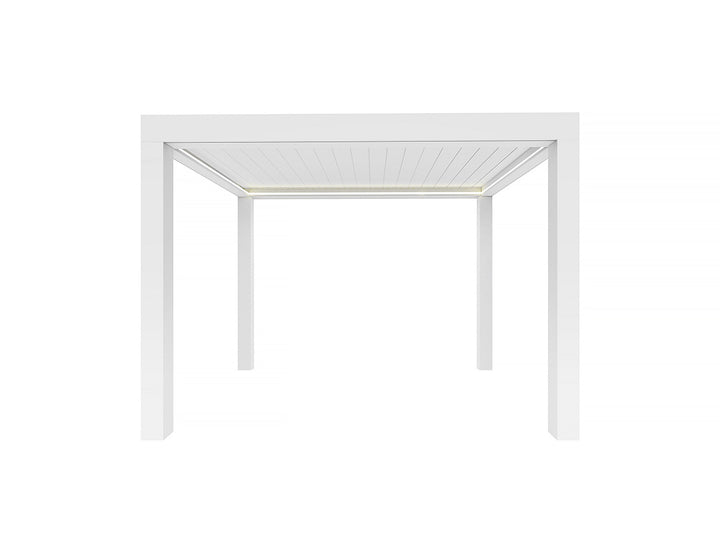

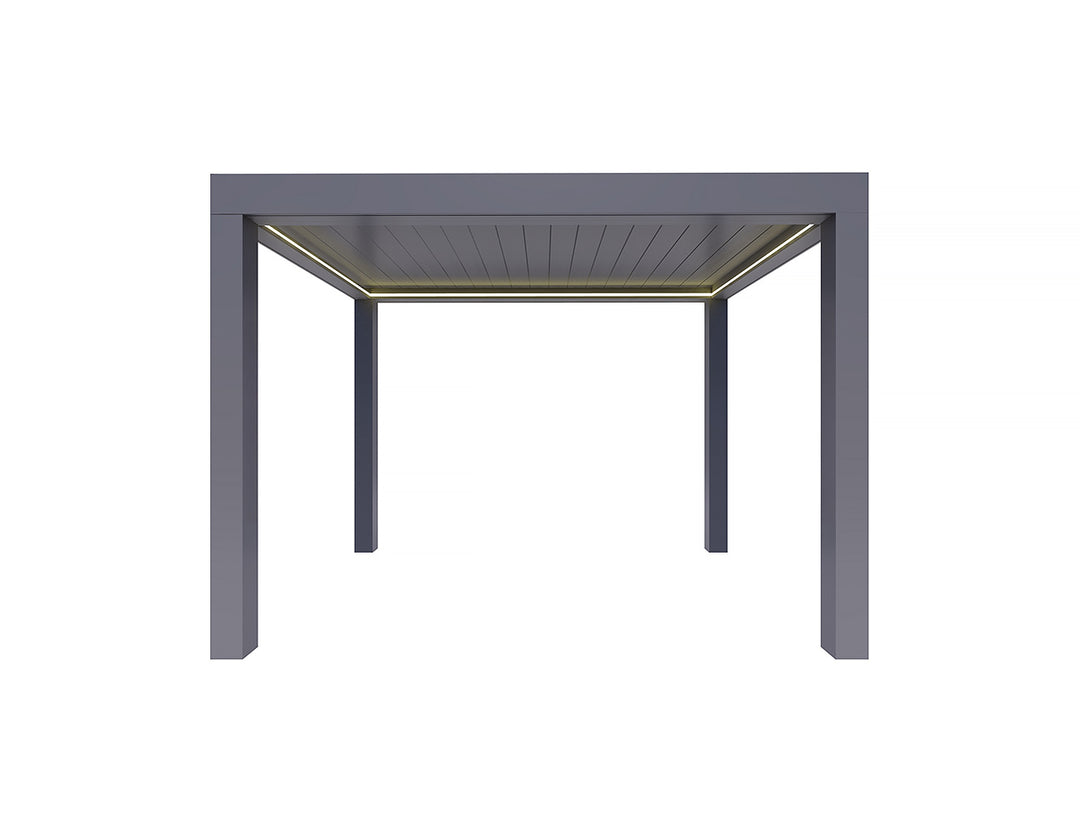

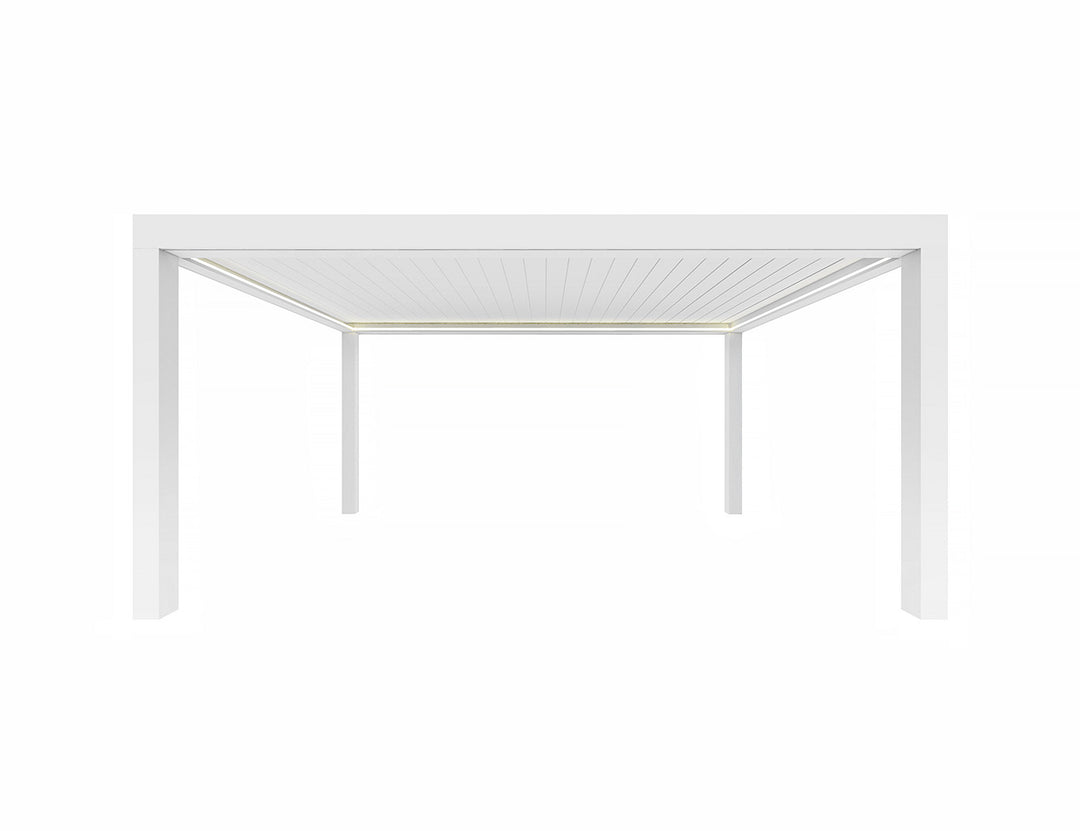

- Two stylish frame colours: White (RAL9016) & Dark Grey (RAL7024)
- Available in multiple sizes, up to 6x4m standard
- Weather-resistant aluminium construction for durability
Specifications:
- Colour: White (RAL9016) / Dark Grey (RAL7024)
- Material: The pergola blades are 6063-T6 aluminium, and the rest of the parts are 6063-T5 aluminium
-
Available Sizes (W x D x H in meters):
4 x 3 x 2.5

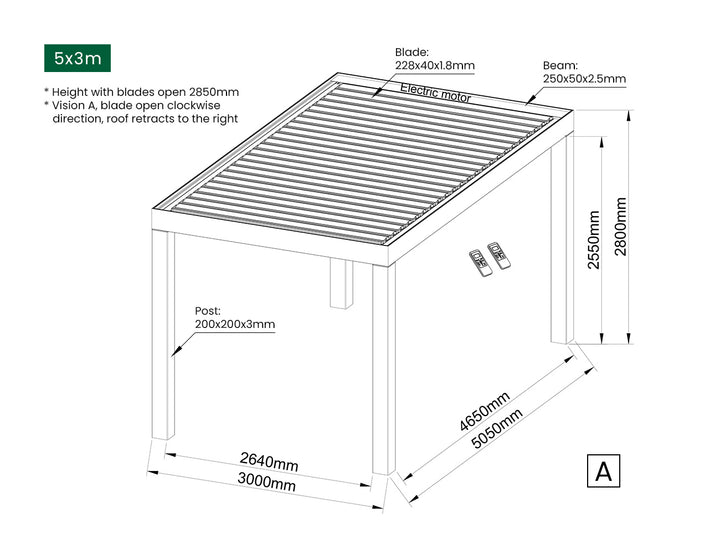

5 x 3 x 2.5
6 x 3 x 2.5

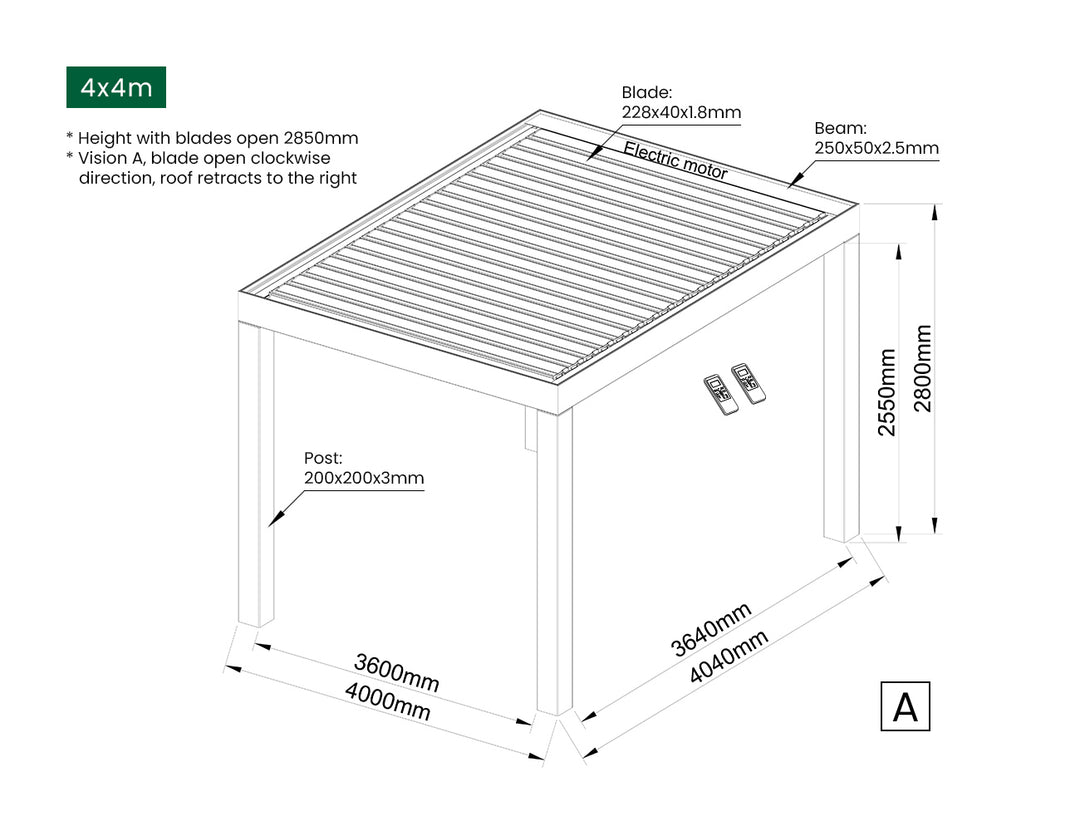

4 x 4 x 2.5

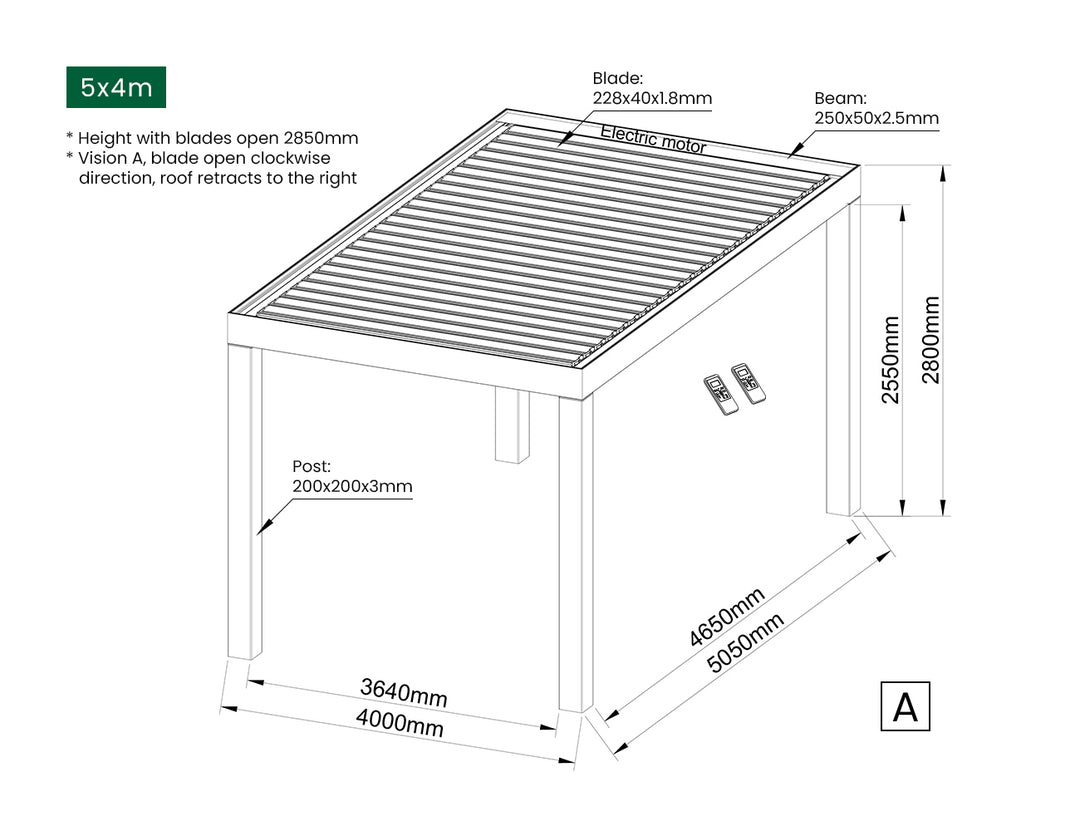

5 x 4 x 2.5
6 x 4 x 2.5 - Remote Controls: Two remotes——one for lights, one for the louvres
- Louvre Tilt: 170 degrees
- Wind Resistance: 170-200 km/h.（When the roof is open）
- Snow Load: 120 kg/m² when closed
- Height: With blades closed 2800mm
- Compatible APP: Geeklink Smart Partner
- Warranty: 10 years on structure, 3 years on motors

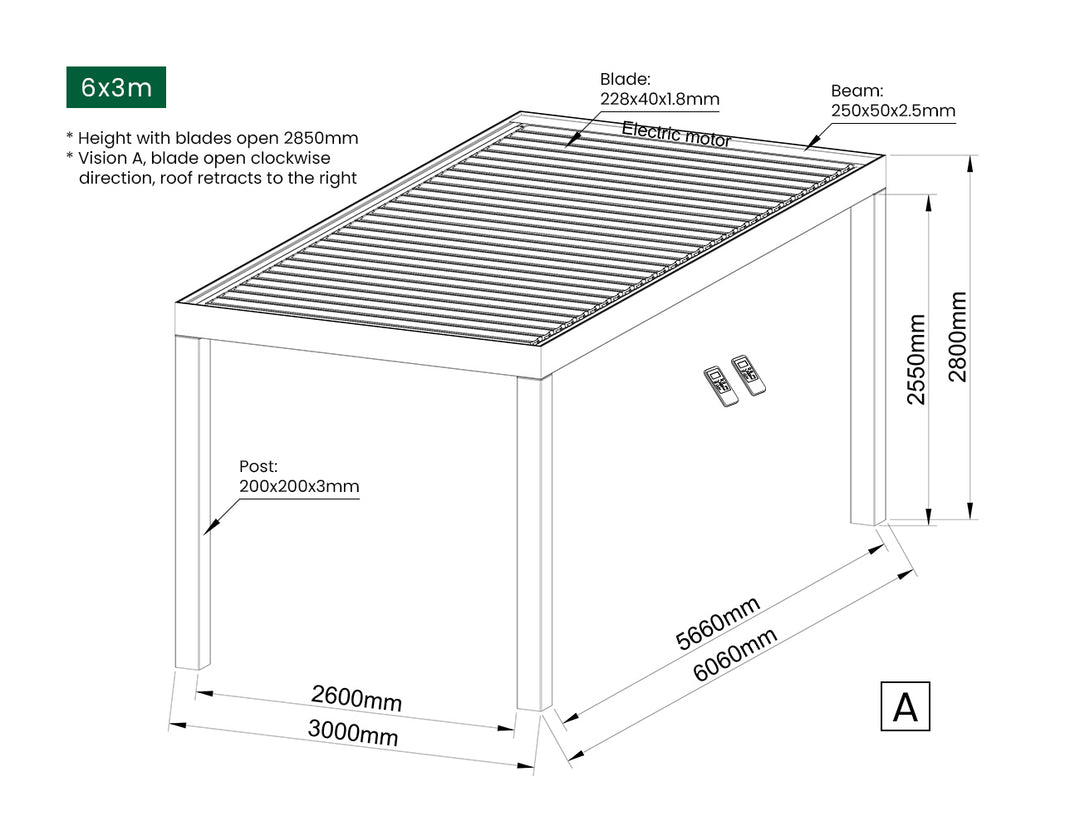

- Blade: 228 x 40 x 1.8 mm (double layer)
- Beam: 250 x 50 x 2.5 mm
- Gutter: 142 x 58 x 1.5 mm
- Post: 200 x 200 x 3 mm
- Motor: Grade IP44
- Packaging Material: Carton
Package Contents:
- 1x Mediterranean-SKY Motorised Freestanding Retractable Louvre Roof System
- 1x Instruction Manual
Click to download: Mediterranean-SKY Freestanding Retractable Pergola Manual
Warranty Exclusions:
The warranty does not cover changes, fading or damage caused by extreme weather conditions (including severely heavy rain or wind, heat from BBQs and heaters). The warranty also does not cover damage caused by misuse, accident or negligence. Installation instructions MUST be followed closely as damage caused by not following the instructions voids your warranty.
| Freestanding | 4 x 3m | 5 x 3m | 6 x 3m | 4 x 4m | 5 x 4m | 6 x 4m |
| LED Stripe | 4pcs | 4pcs | 4pcs | 4pcs | 4pcs | 4pcs |
| Gross Weight | 443KG | 490KG | 553KG | 485KG | 555KG | 623KG |
| Package 1 | 2800 x 300 x 330, 49KG | 2750 x 300 x 300, 45KG | 2750 x 300 x 300, 45KG | 3750 x 300 x 300, 60KG | 3800 x 300 x 300, 59KG | 3800 x 300 x 300, 59KG |
| Package 2 | 2800 x 300 x 330, 49KG | 2750 x 300 x 300, 45KG | 2750 x 300 x 300, 45KG | 3750 x 300 x 300, 60KG | 3800 x 300 x 300, 59KG | 3800 x 300 x 300, 59KG |
| Package 3 | 2800 x 300 x 330, 49KG | 2750 x 300 x 300, 45KG | 2750 x 300 x 300, 45KG | 3750 x 300 x 300, 60KG | 3800 x 300 x 300, 59KG | 3800 x 300 x 300, 59KG |
| Package 4 | 3080 x 300 x 330, 42KG | 2750 x 300 x 300, 45KG | 2750 x 300 x 300, 45KG | 4100 x 410 x 260, 90KG | 3800 x 300 x 300, 59KG | 3800 x 300 x 300, 59KG |
| Package 5 | 4130 x 300 x 330, 57KG | 3100 x 300 x 300, 49KG | 2750 x 300 x 300, 35KG | 4000 x 410 x 230, 92KG | 4100 x 300 x 300, 55KG | 3800 x 300 x 300, 59KG |
| Package 6 | 3960 x 300 x 330, 74KG | 5150 x 300 x 260, 54KG | 3100 x 300 x 300, 49KG | 2720 x 460 x 260, 54KG | 5150 x 300 x 260, 54KG | 4100 x 300 x 300, 55KG |
| Package 7 | 2720 x 460 x 260, 54KG | 5050 x 410 x 230, 80KG | 6100 x 300 x 260, 65KG | 2720 x 460 x 260, 54KG | 5050 x 410 x 230, 83KG | 6150 x 300 x 260, 65KG |
| Package 8 | 2720 x 460 x 260, 54KG | 2720 x 460 x 260, 54KG | 6050 x 410 x 230, 96KG | 550 x 300 x 300, 15KG | 2720 x 460 x 260, 54KG | 6000 x 410 x 230, 100KG |
| Package 9 | 550 x 300 x 300, 15KG | 2720 x 460 x 260, 54KG | 2720 x 460 x 260, 54KG | 2720 x 460 x 260, 54KG | 2720 x 460 x 260, 54KG | |
| Package 10 | 550 x 300 x 300, 19KG | 2720 x 460 x 260, 54KG | 550 x 300 x 300, 19KG | 2720 x 460 x 260, 54KG | ||
| Package 11 | 550 x 300 x 300, 20KG | 550 x 300 x 300, 20KG |
