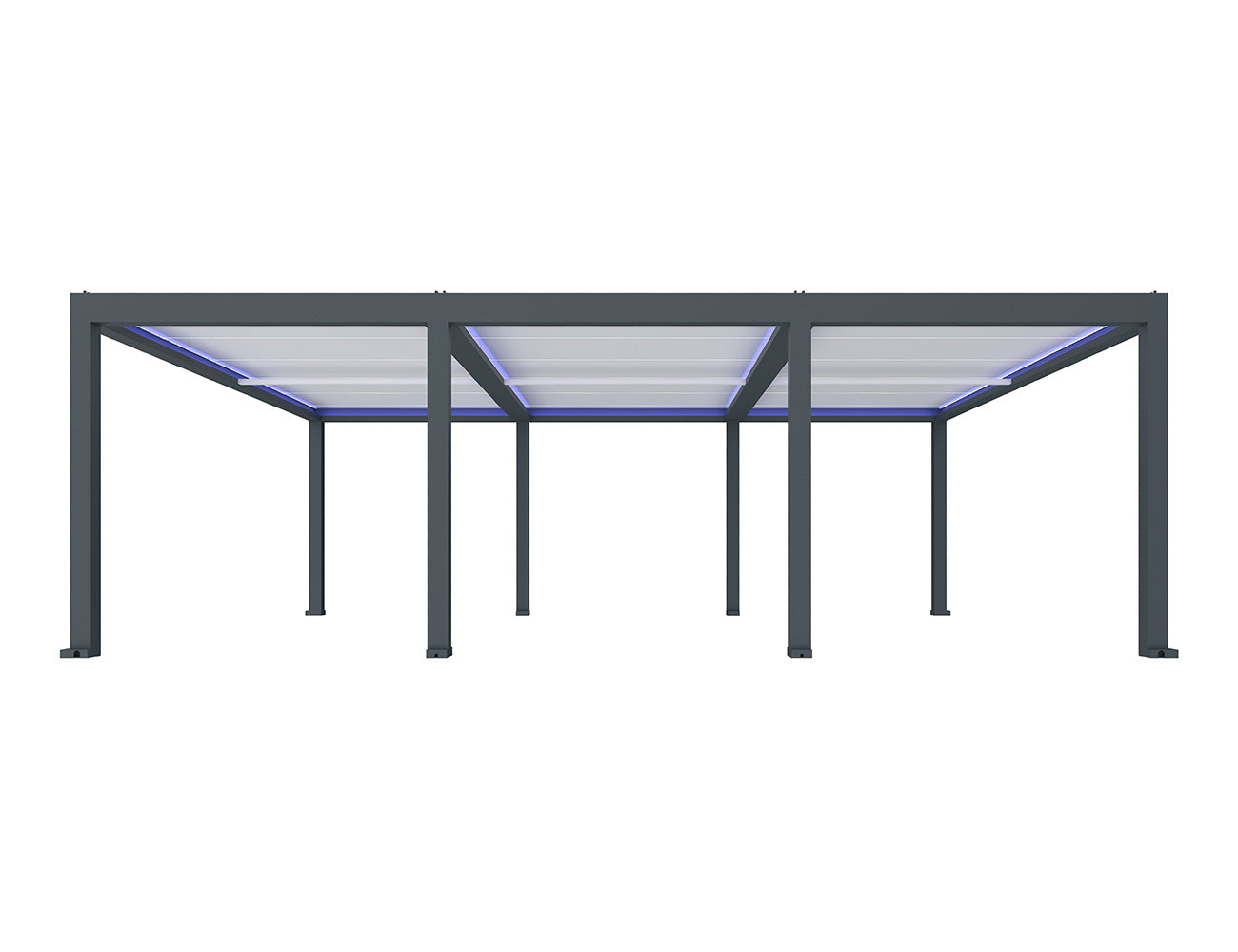

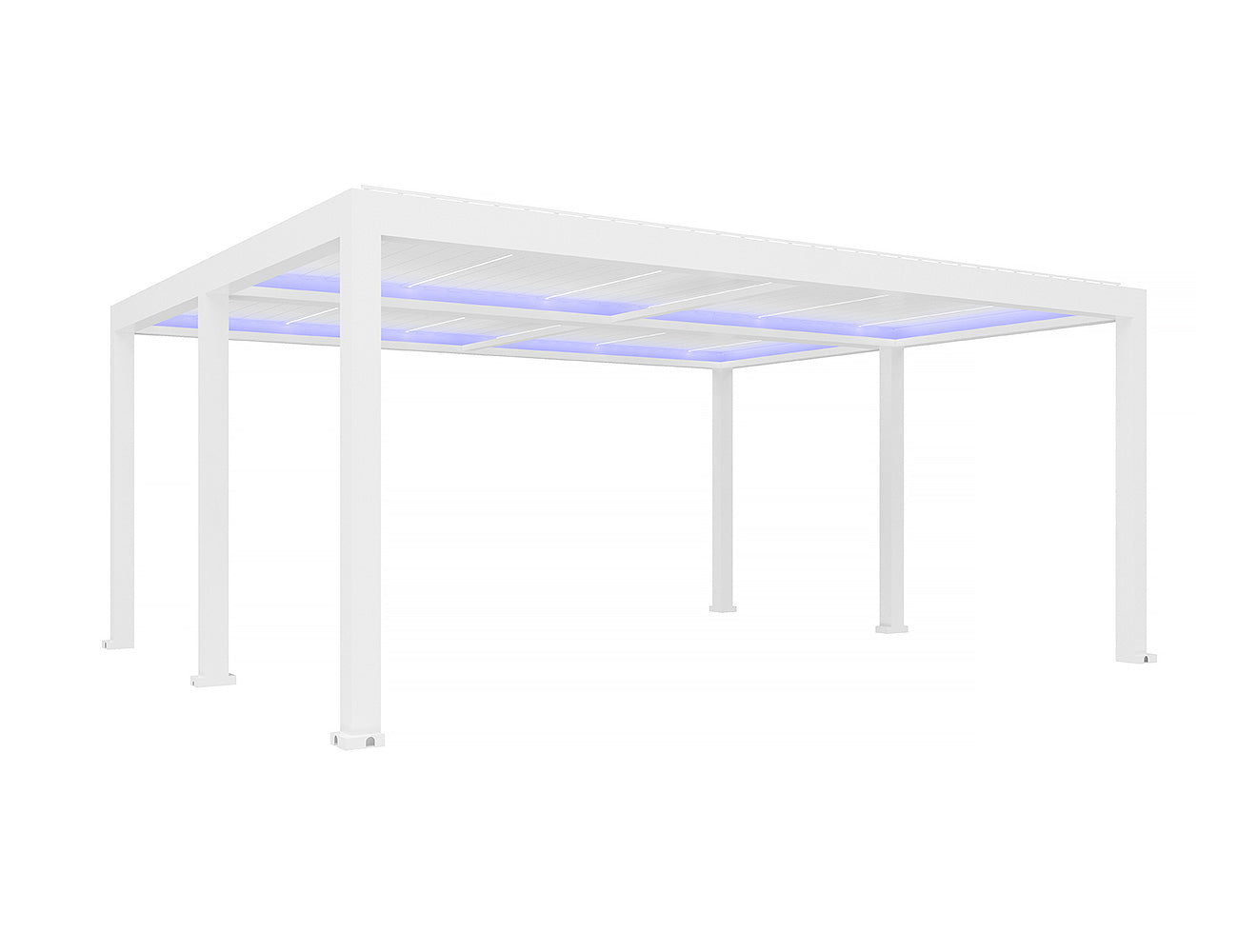

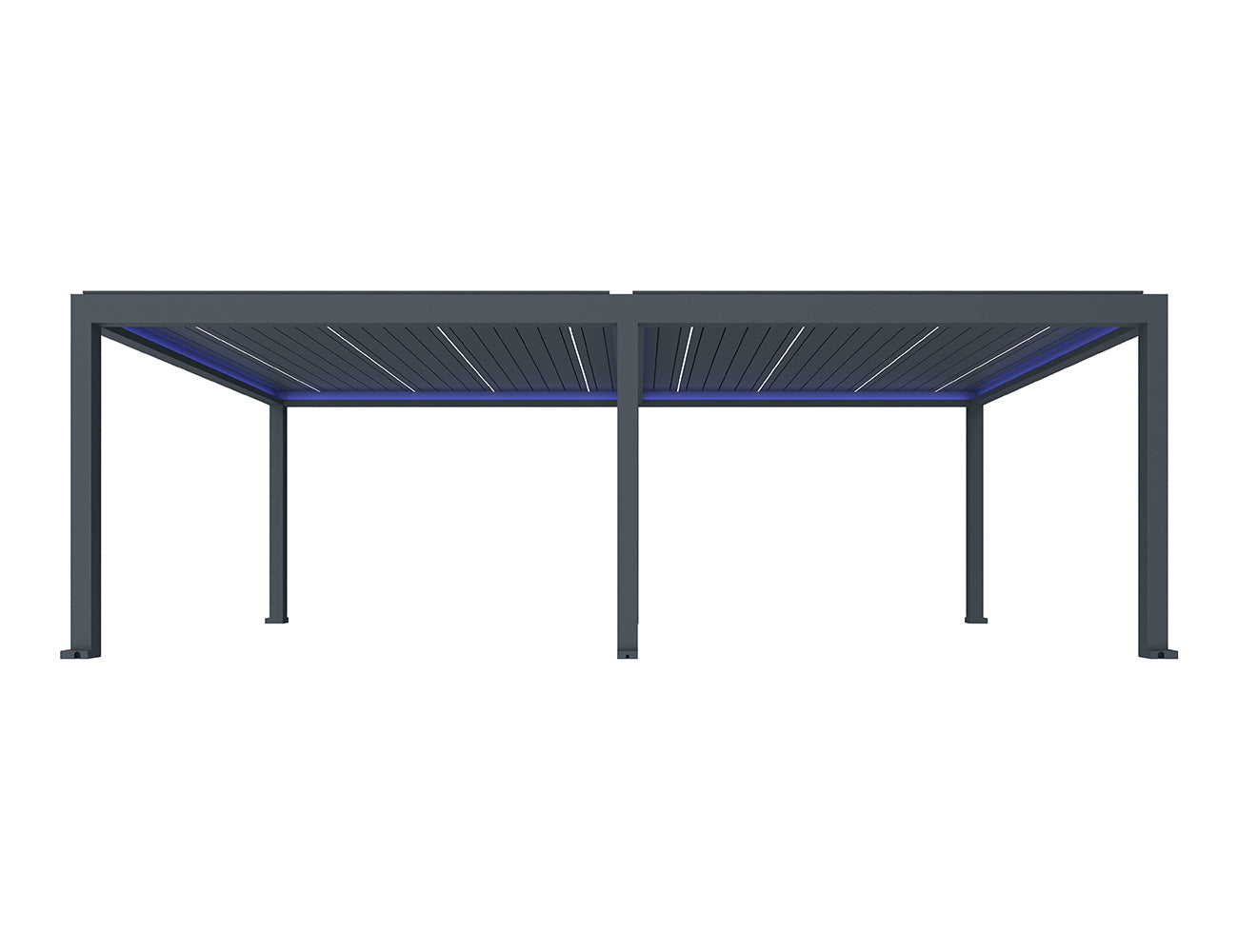

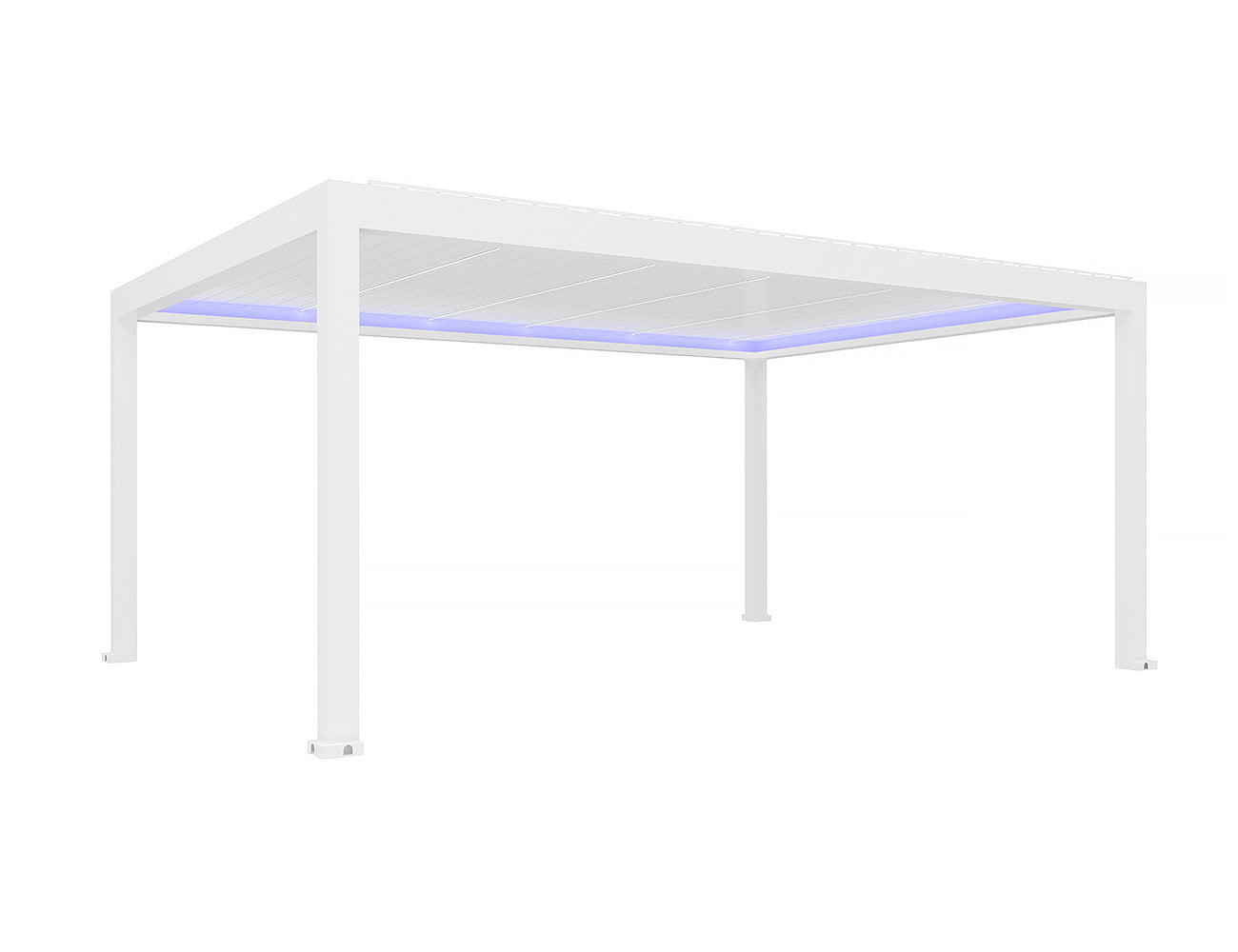

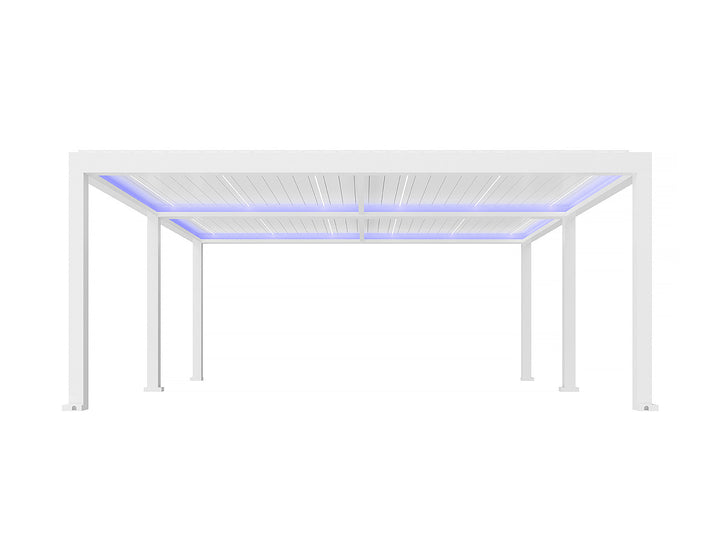

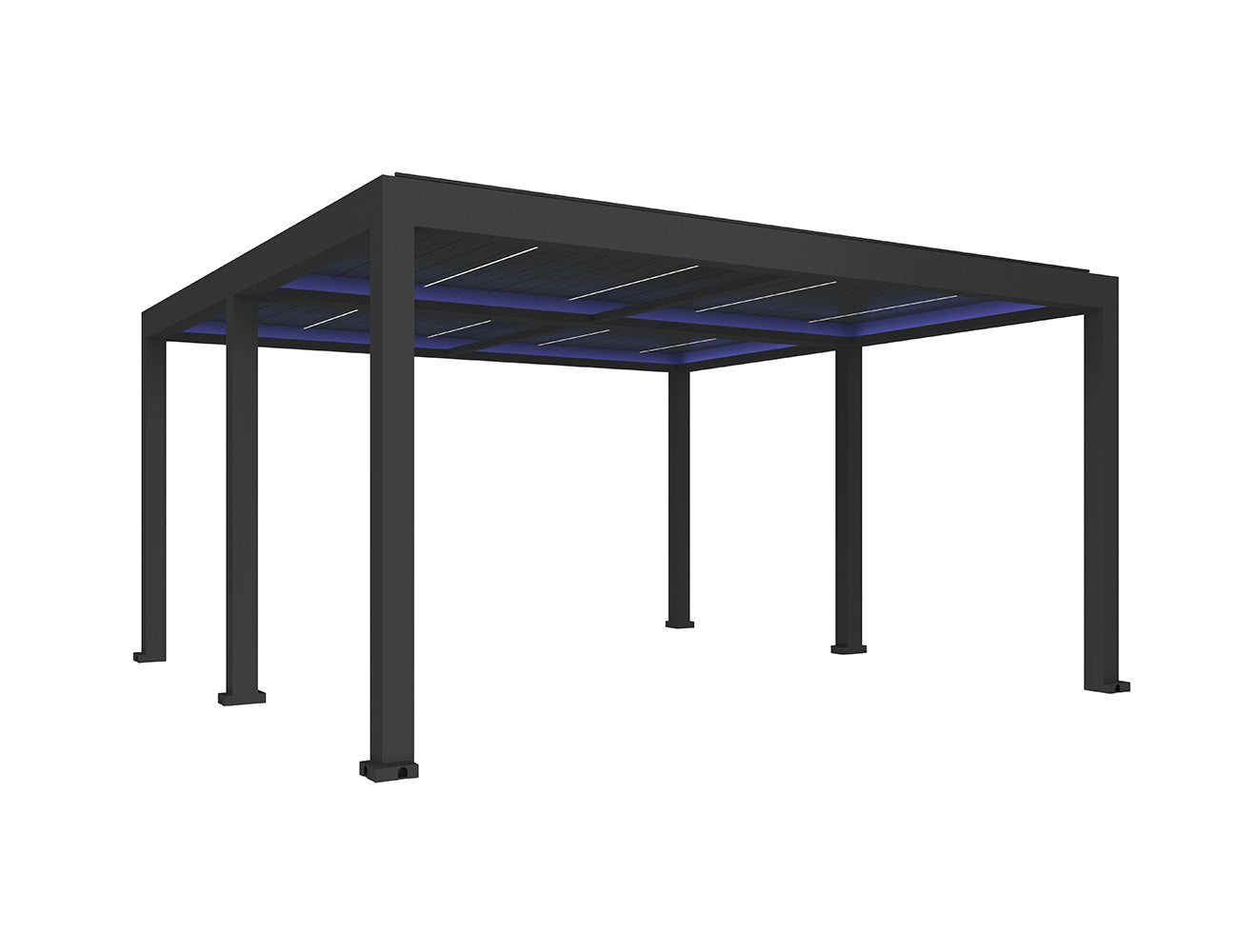

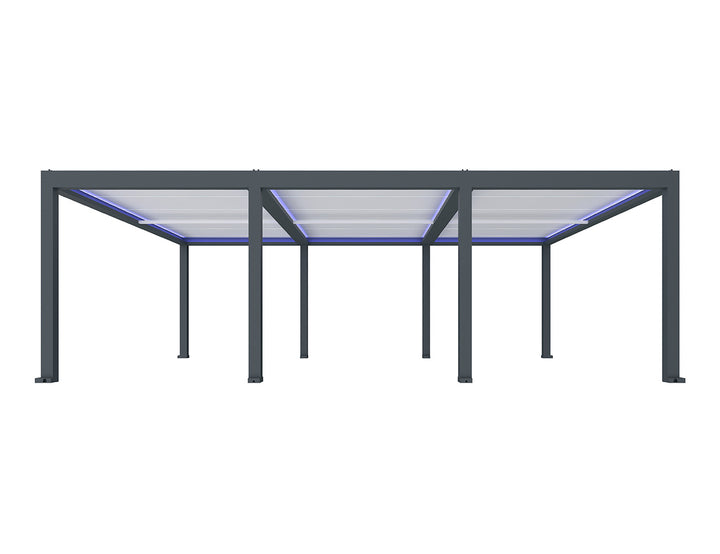

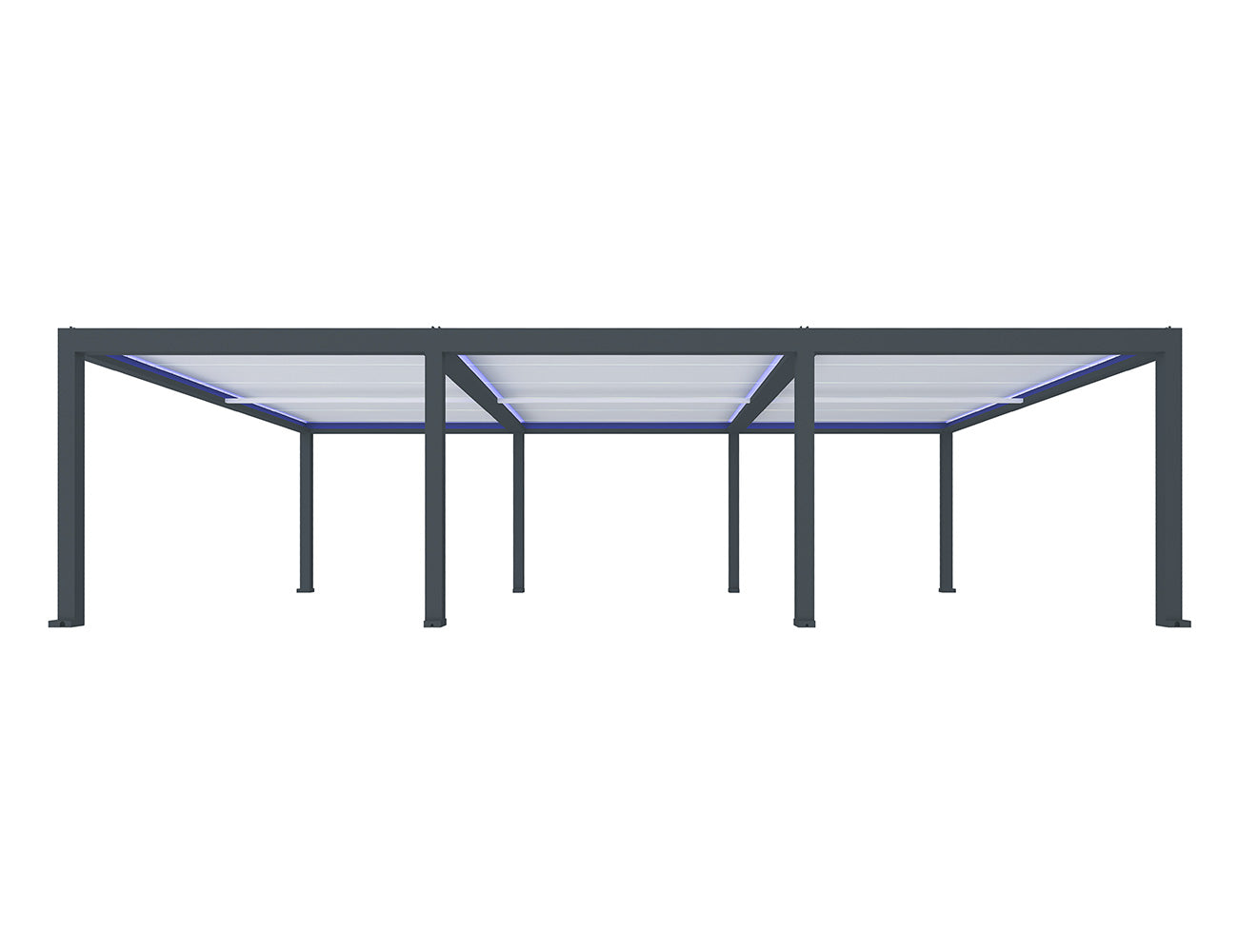

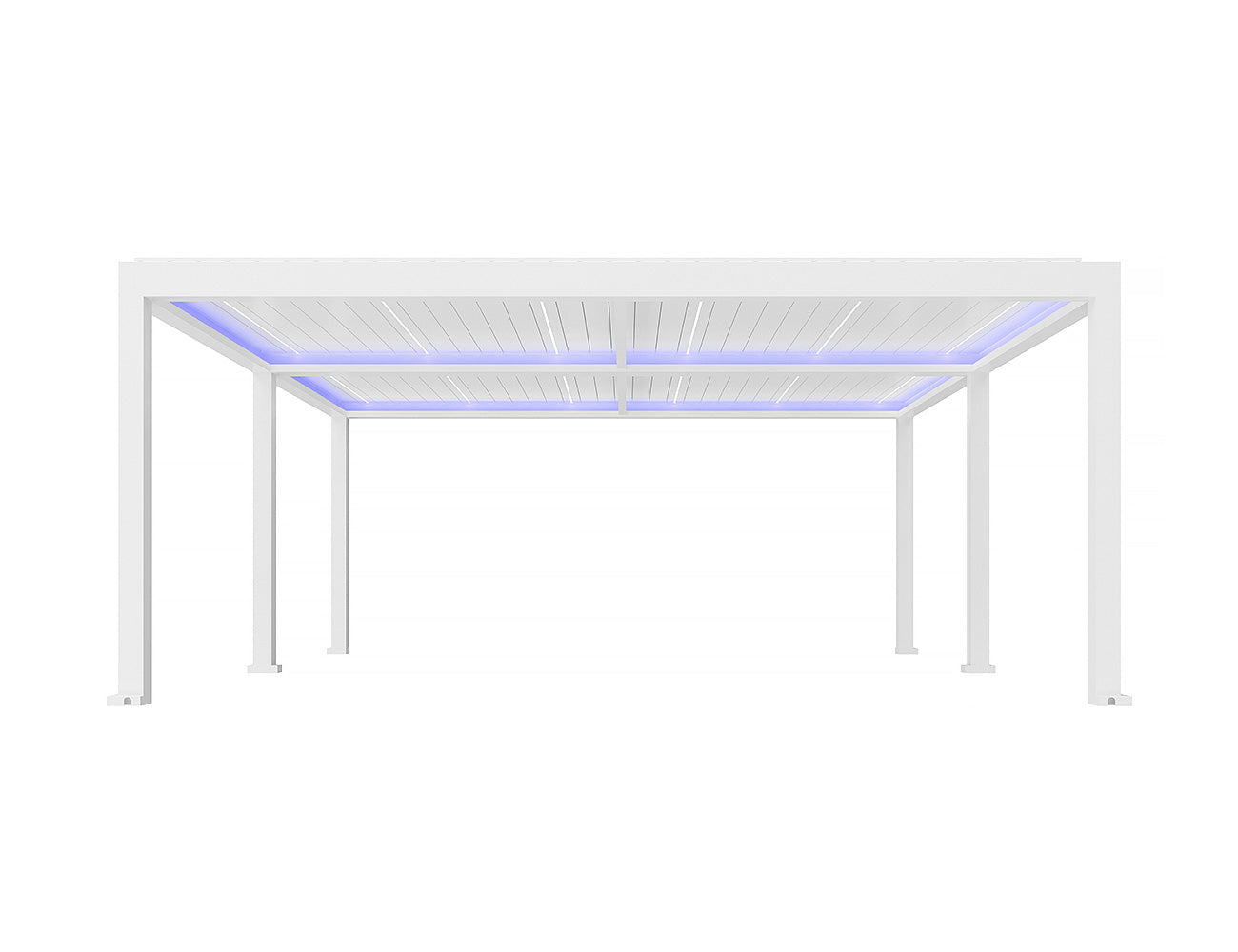

Pacific Motorised Freestanding Louvre Roof
SKU: CS21119-10
Enjoy outdoor living at its finest with the Pacific freestanding Louvre Roof.
A motorised pergola is a perfect solution for backyard shade, whether you’re entertaining or relaxing. Designed to allow for shade when you need it, protection from the elements or refreshing airflow, the Pacific freestanding Louvre Roof Pergola is remote-controlled for your convenience.
The Pacific pergola is strong and durable due to its powder-coated aluminium construction and double-layer louvres. Ideal for by the coast or on the farm, the all-weather resistant pergola is specially designed for the Australia climate, withstanding sun, wind, rain and snow.
Elevate your outdoor lifestyle with our motorised louvre pergola, a fusion of craftsmanship and innovative engineering. From intimate gatherings to tranquil solo moments, this pergola promises to be your ultimate outdoor retreat. Don't just enhance your space; redefine it with our premium offering. Choose excellence, choose durability, choose a motorised louvre pergola that's designed to make your outdoor dreams a reality.
For more important information on our installation options, please get in touch with our team today via email at support@luxiliving.com.au Our experienced team offer a range of install options nationwide. This is an excellent option to guarantee the professional quality and performance of your pergola.

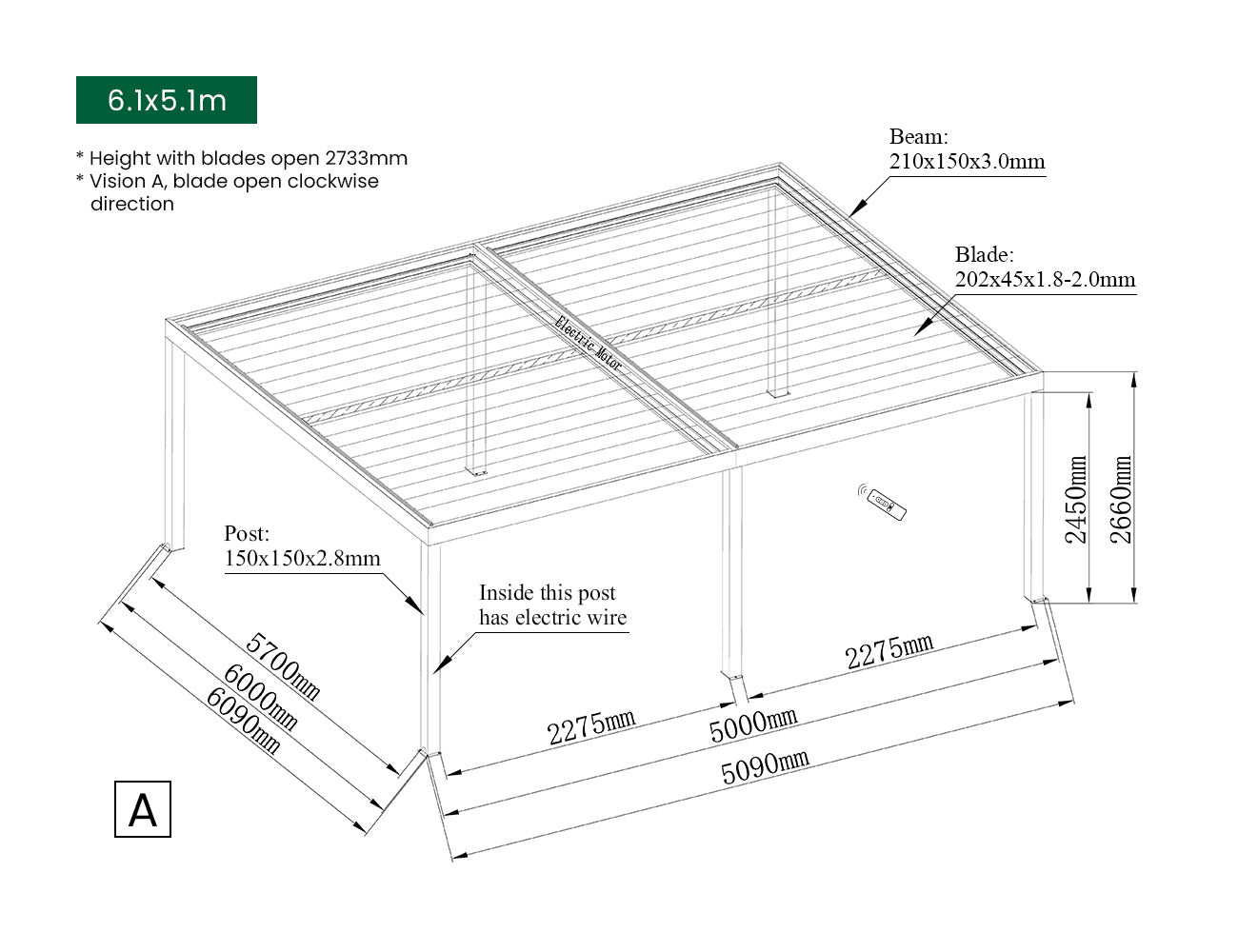

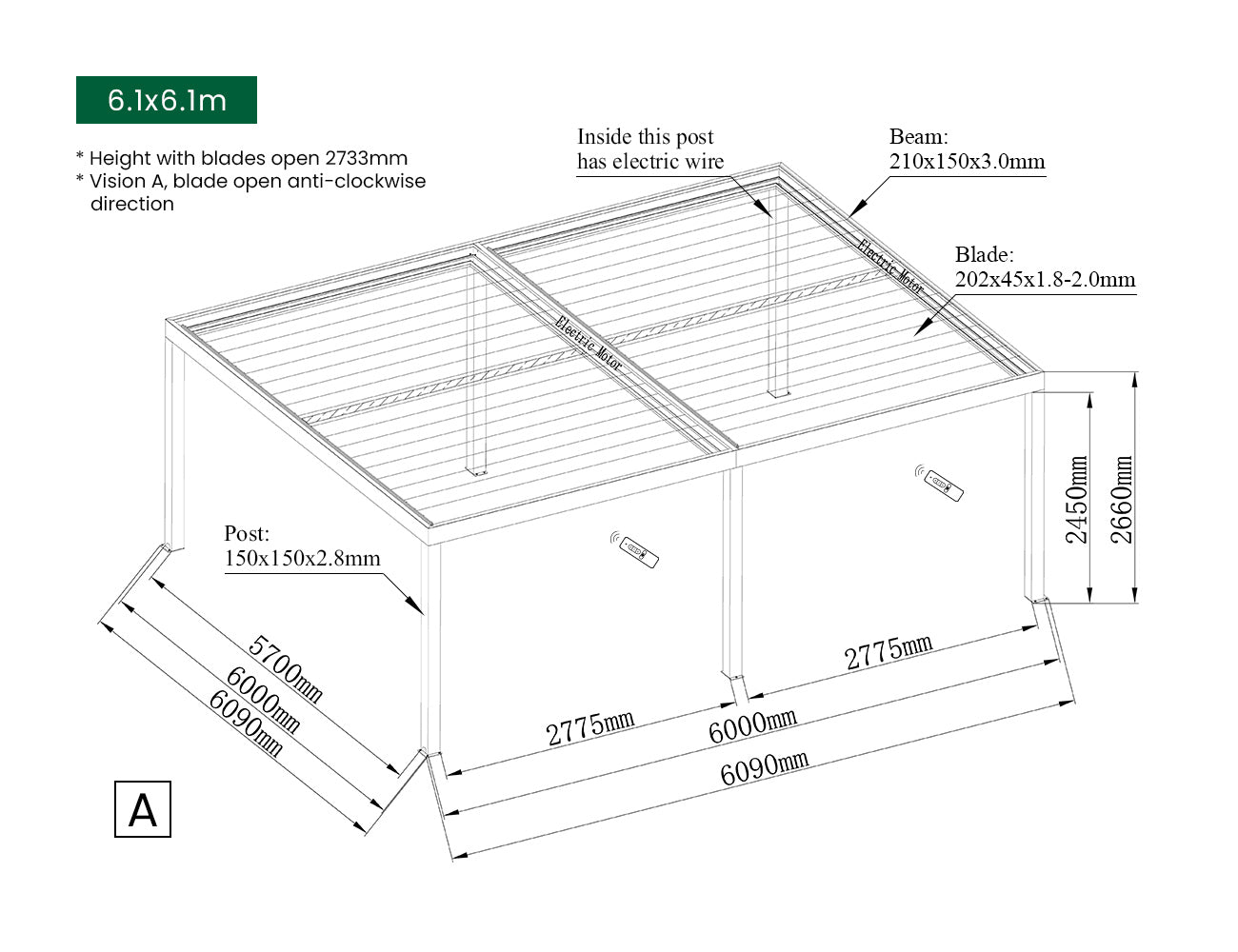

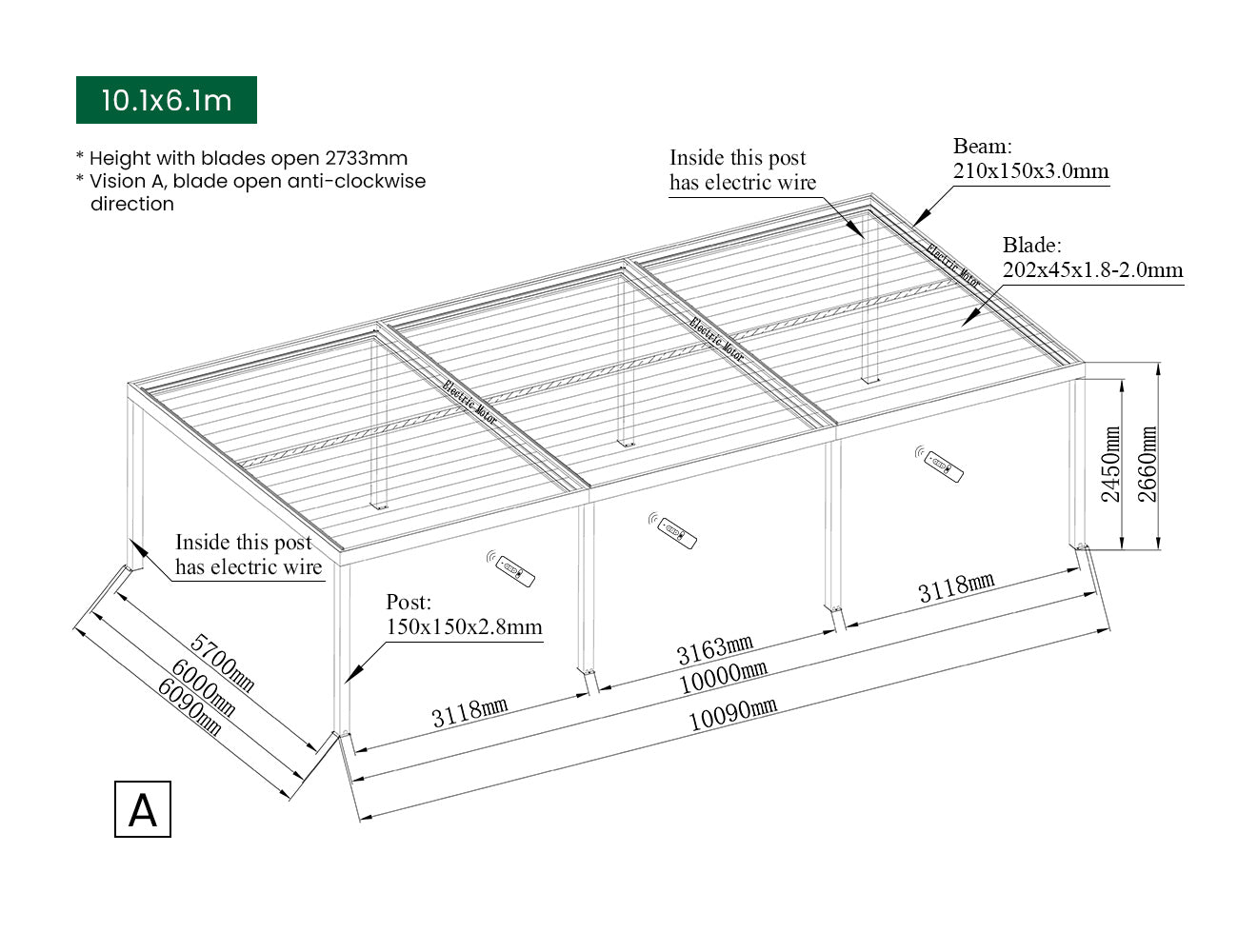

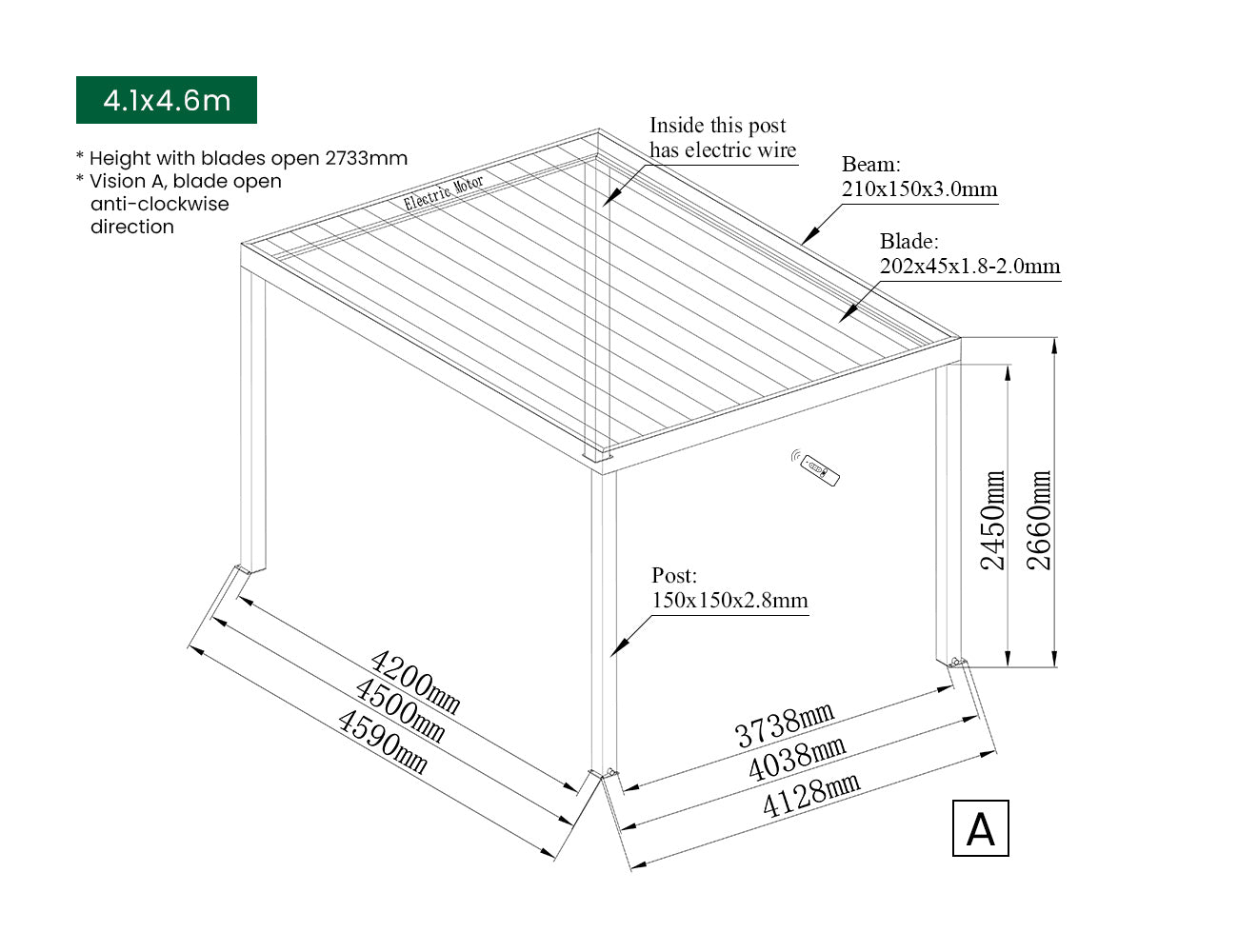

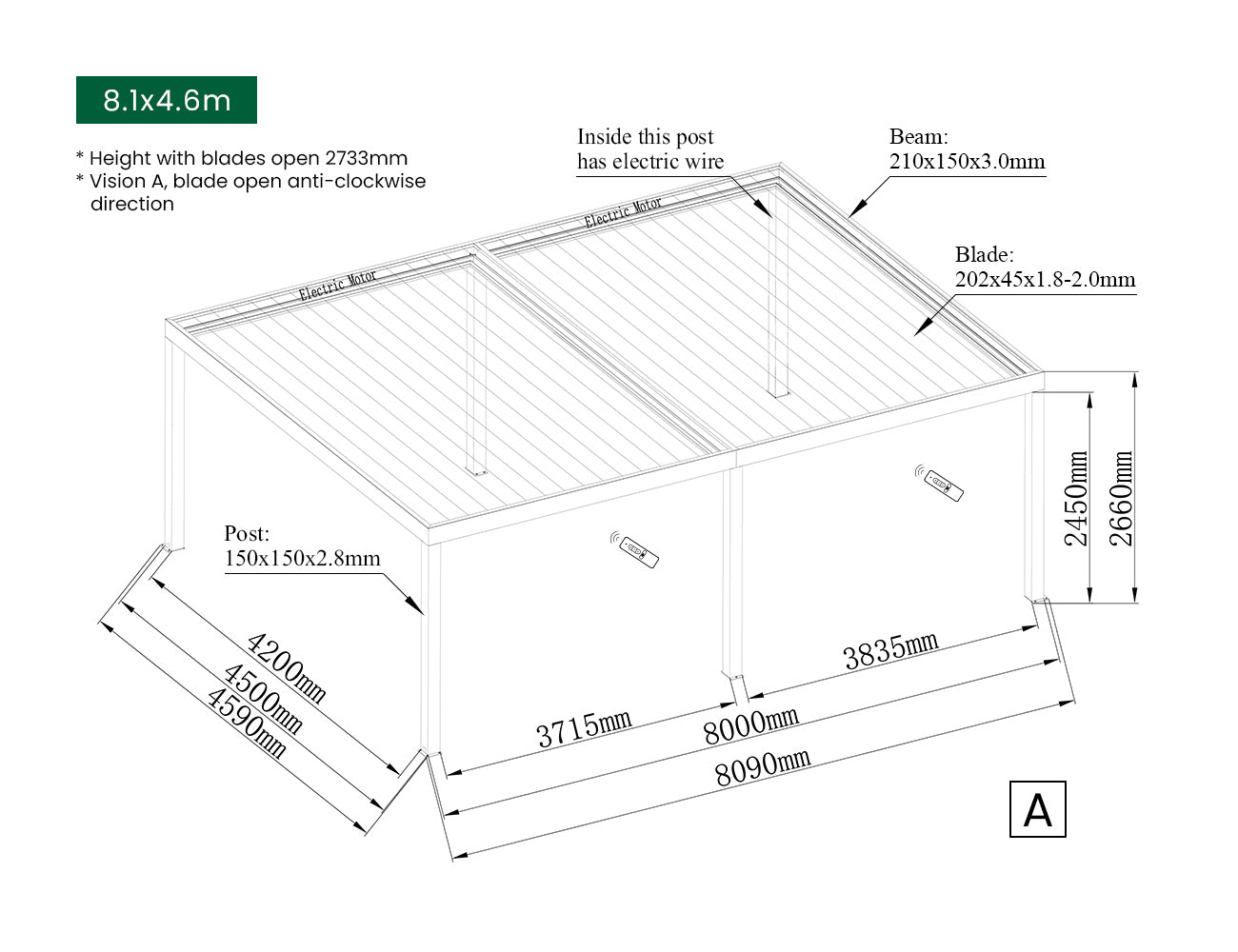

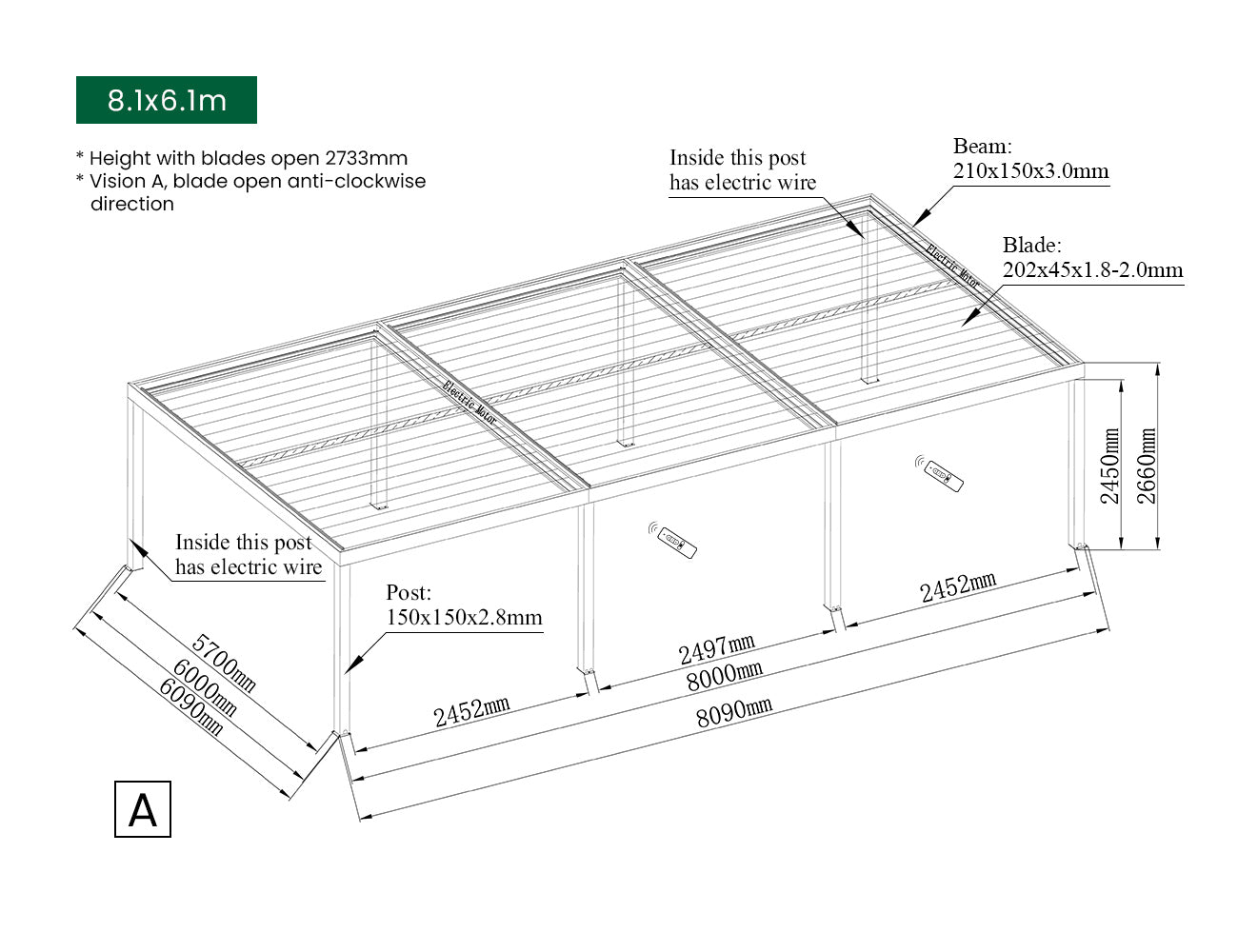

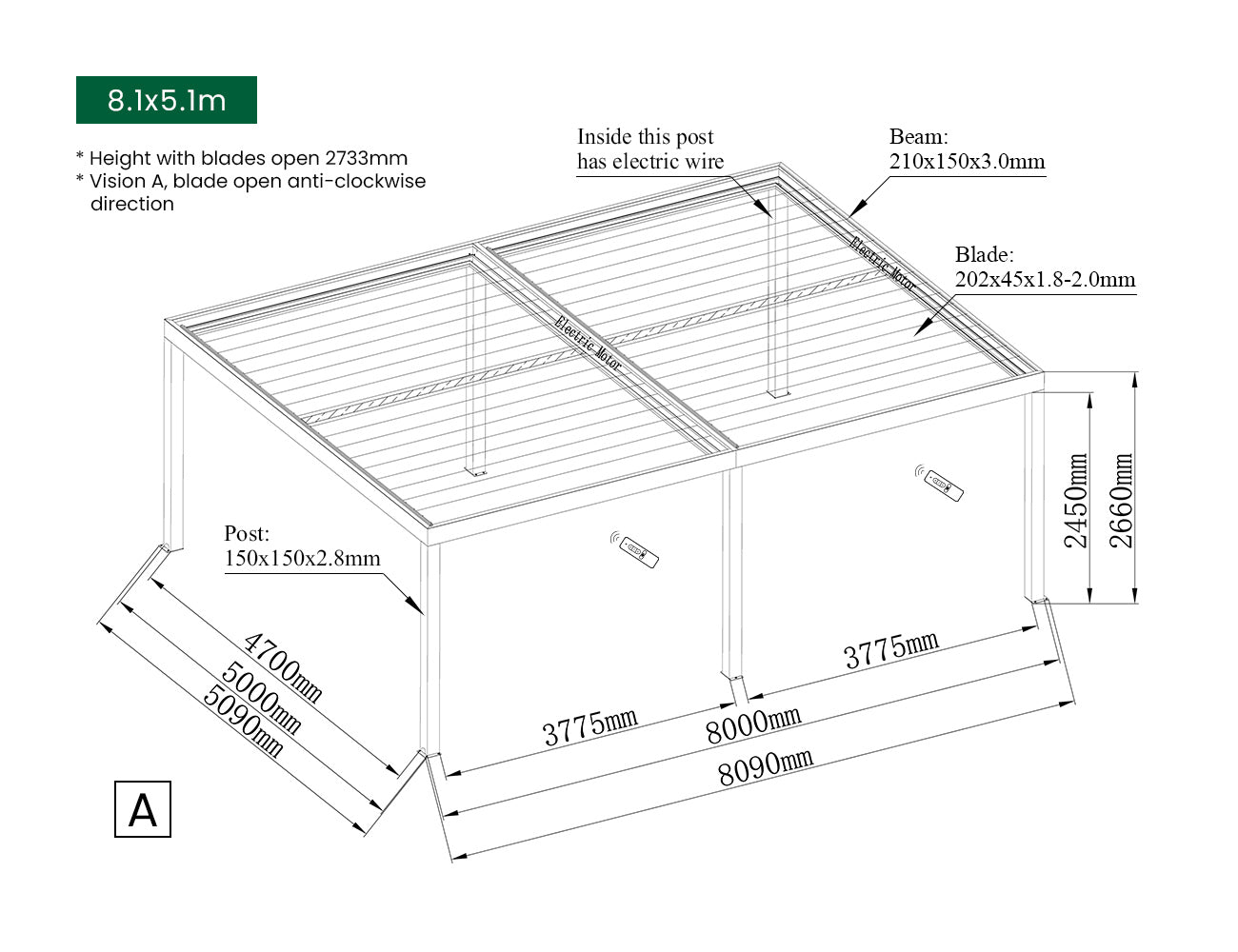

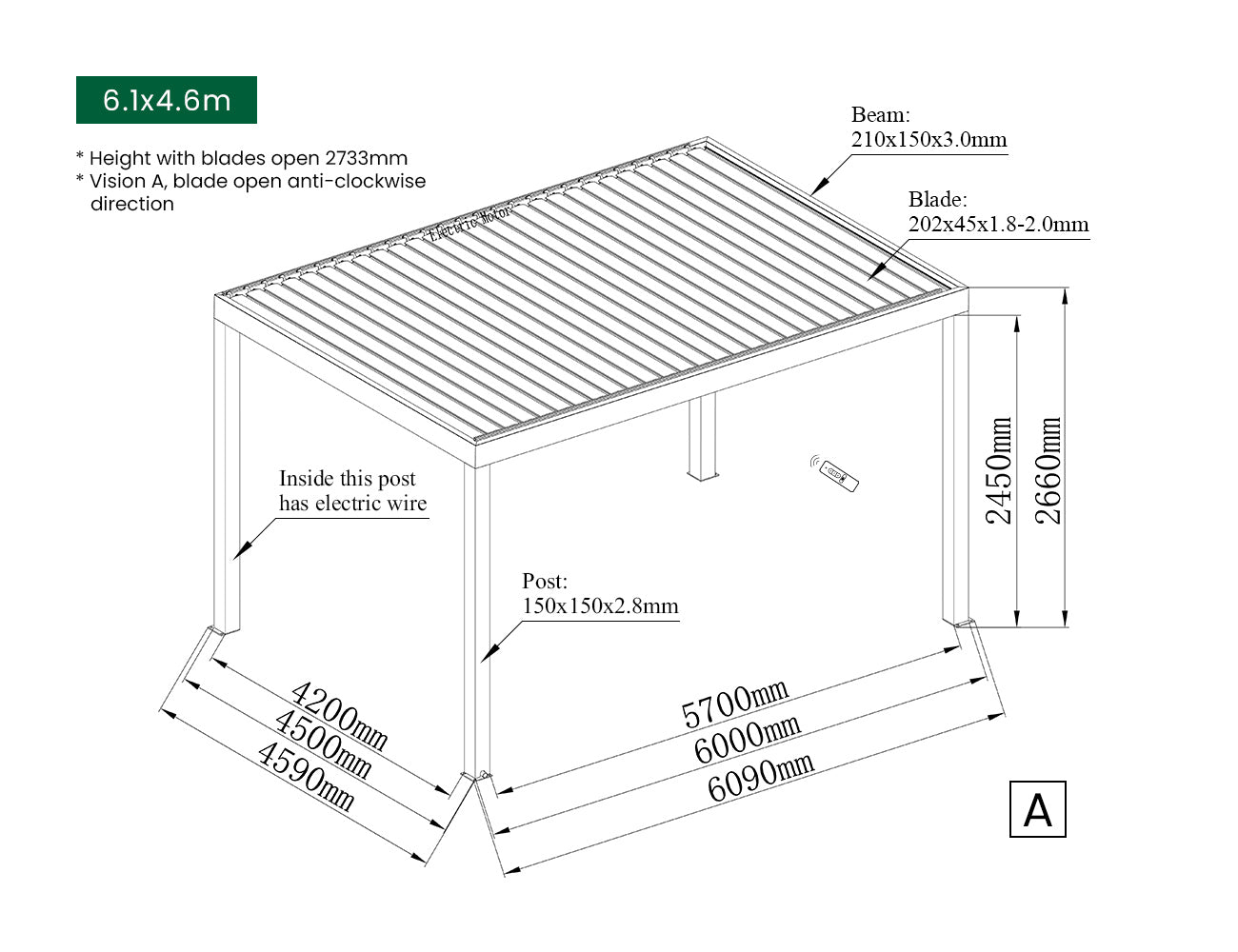

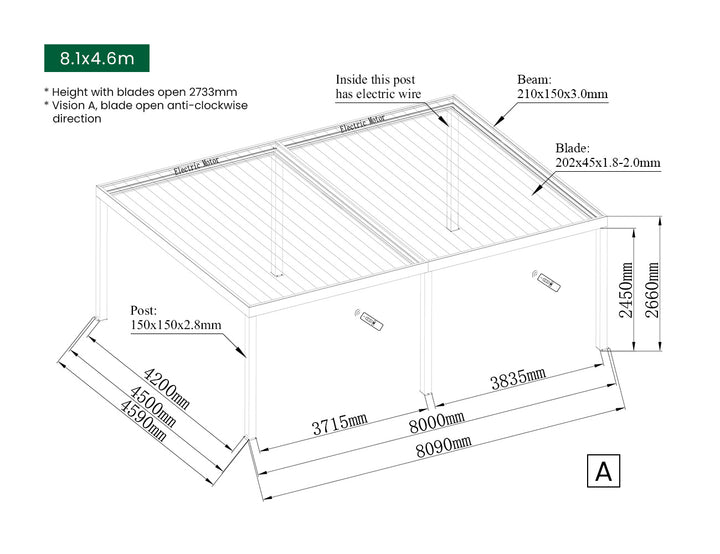

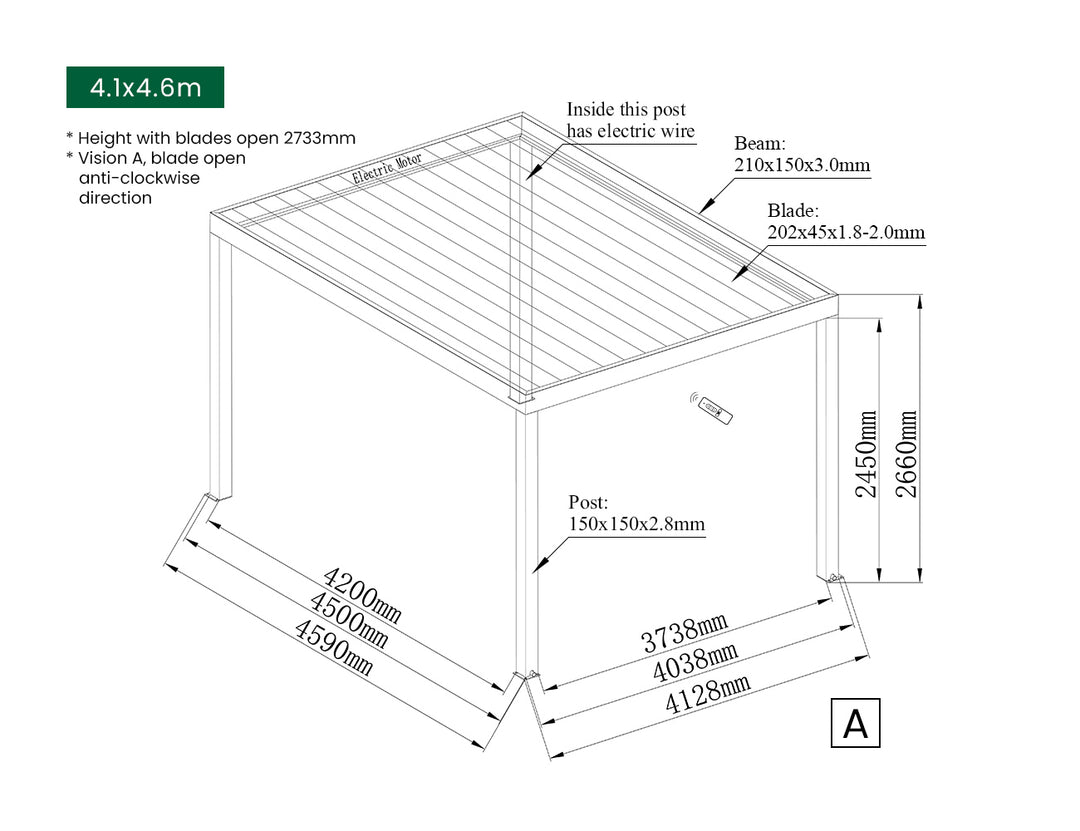

"NB: Actual Sizes may differ from those in title - please check line drawings carefully"
Features:
- Modern and simple style with timeless appeal
- No need to open the louvre when it's raining or snowing.
- The frame structure is made of 6063-T6 aluminium alloy, which is bend resistant and never rusts
- Coated with internationally renowned brand AkzoNobel powder: strong adhesion, high colour fastness, and weather resistant
- The column and the sink beam are quick to assemble and sturdy
- Unique blade structure design: water tight, and can withstand extreme weather
- Standard two-colour blade light strip (3000K warm light + 6000K white light), stepless dimming, with dimming memory function
- The blades can be rotated and opened at any angle within 0 to 100 degrees
- Allow at least 10cm clearance above the frame for when louvres are fully open
- Height with blades open 2734.5mm
Specifications:
- Colour: Black / Charcoal / White / Frame Charcoal+Louvre White
- Material: Aluminium alloy 6063-T6
- Blades: 200 x 40 x 2mm
- Beam with Gutters: 210 x 150 x 3mm
- Posts: 150 x 150 x 3mm
- Finish: AKZO Powder Coated
- Motor: Grade IP67
- Light: 3000K warm light+6000k white light, stepless dimming
- Tilt Range: 100 Degrees
- Wind resistance: 170 - 220km/h
- Snow Load: 110 - 310KG/m²（56 - 80cm thickness）
- Packaging Material: Carton
- 10-year warranty on structure and 3-year warranty on electric motors
Package Contents:
- 1 x Pacific freestanding Louvre Roof
- 1 x Instruction Manual
| 4 x 4m | 5 x 4m | 6 x 4m | |
| LED Stripe | 4pcs | 5pcs | 6pcs |
| Gross Weight | 380kg | 420KG | 542kg |
| Package 1 | 393.3 x 28.5 x 24.6cm,53kg | 493.3 x 28.5 x 24.6cm,58kg | 593.3 x 28.5 x 24.6cm,63.56kg |
| Package 2 | 393.3 x 28.5 x 24.6cm,53kg | 493.3 x 28.5 x 24.6cm,60kg | 593.3 x 28.5 x 24.6cm,64.88kg |
| Package 3 | 386.7 x 26.3 x 32cm, 62.73kg | 386.7 x 26.3 x 32cm, 62.73kg | 386.7 x 26.3 x 32cm, 59.7kg |
| Package 4 | 386.7 x 26.3 x 32cm, 62.73kg | 386.7 x 26.3 x 32cm, 62.73kg | 386.7 x 26.3 x 32cm, 59.7kg |
| Package 5 | 386.7 x 26.3 x 32cm, 62.73kg | 386.7 x 26.3 x 32cm, 62.73kg | 386.7 x 26.3 x 32cm, 59.7kg |
| Package 6 | 386.7 x 26.3 x 22.5cm, 31.6kg | 386.7 x 26.3 x 22.5cm, 31.6kg | 386.7 x 26.3 x 32cm, 59.7kg |
| Package 7 | 248.5 x 36 x 32cm, 51.32kg | 248.5 x 36 x 32cm, 51.32kg | 386.7 x 26.3 x 32cm, 59.7kg |
| Package 8 | 46.5 x 24.5 x 33.5cm, 5kg | 46.5 x 24.5 x 33.5cm, 5kg | 386.7 x 26.3 x 14cm, 62.73kg |
| Package 9 | 46.5 x 24.5 x 33.5cm, 5kg | 46.5 x 24.5 x 33.5cm, 5kg | 248.5 x 36 x 32cm, 51.32kg |
| Package 10 | 46.5 x 24.5 x 33.5cm, 15kg | 46.5 x 24.5 x 33.5cm, 15kg | 46.5 x 24.5 x 33.5cm, 5kg |
| Package 11 | 46.5 x 24.5 x 33.5cm, 5kg | ||
| Package 12 | 46.5 x 24.5 x 33.5cm, 15kg |
Click to download: Installation manual
*NOTE: Install must be on a suitable substrate surface. We recommend seeking professional advice before installation.Please ensure professional installation of your louvre system. For your safety, please do not make any alterations to the system - any adjustments will void your warranty.
It is a semi permanent structure. Please check your council requirements for semi-permanent structures.
Warranty Exclusions:
The warranty does not cover changes, fading or damage caused by extreme weather conditions (including severely heavy rain or wind, heat from BBQs and heaters). The warranty also does not cover damage caused by misuse, accident or negligence. Installation instructions MUST be followed closely as damage caused by not following the instructions voids your warranty.
The warranty does not cover changes, fading or damage caused by extreme weather conditions (including severely heavy rain or wind, heat from BBQs and heaters). The warranty also does not cover damage caused by misuse, accident or negligence. Installation instructions MUST be followed closely as damage caused by not following the instructions voids your warranty.
Warranty covers domestic use only and excludes commercial use.
At Luxi Living, we provide professional installation services for our high-quality louvred pergolas. Our team of experienced installers ensures a seamless and hassle-free setup for our customers.
Regions Covered
Currently, our assembly service is available in the following regions:
- Brisbane
- Sydney
- Melbourne
We are continuously expanding our coverage area, so please check with our team for the latest updates on locations served.
Scheduling Your Installation
To schedule an installation, we recommend that you contact our team as soon as possible. While we strive to provide timely service, please note that we may need to coordinate a few jobs together in order to optimize our resources and scheduling.
Our team will work with you to find the best available timeslot for your installation. We appreciate your understanding and cooperation in this process.
Assembly Fees
The fees for our assembly service are based on the size and complexity of the louvred pergola you have purchased. Please contact our team to receive a personalised quote for your installation needs. The table below provides a general guide, but your final cost may vary depending on your specific requirements.
| Pergola Size (Width x Depth) | Assembly Fee |
|---|---|
| 2m x 2m, 2.5m x 2.5m, 3m x 2m, 3m x 3m | $1,000.00 |
| 4m x 2m, 4m x 3m, 4m x 3.6m, 4m x 4m | $1,200.00 |
| 5m x 3m, 5m x 2m, 5m x 4m | $1,400.00 |
| 6m x 2m, 6m x 3m, 6m x 4m | $1,600.00 |
| 7m x 2m, 7m x 3m, 7m x 4m | $1,800.00 |
| 8m x 3m, 8m x 3.6m, 8m x 4m | $2,000.00 |
| Custom Size | TBD |
| Finding Joist / Concrete Pad - each post | $200.00 |
| Concrete pad levelling issue - each post | $200.00 |
| Concrete pad levelling issue shutter / glass doors - each side | $300.00 |
| Installing Facia/Soffit brackets - each | $50.00 |
| Flashing / m | $75.00 |
| Electrician Required / hour |
$200.00 |
Assembly Fees for Accessories
| Accessory | Assembly Fee |
|---|---|
| Louvre Blinds | $300.00 |
| Shutter Wall / Privacy Screens | $300.00 |
| Shutter / Glass Sliding Doors (2m, 2.5m, 3m, 3.5m, 3.6m) | $500.00 |
| Shutter / Glass Sliding Doors (4m, 5m, 6m) | $700.00 |
Please note that for some locations, additional travel costs may apply. We encourage you to contact our team to get a personalised quote for your installation needs.
Our team is committed to providing a seamless and professional installation experience. If you have any questions or would like to schedule an installation, please don't hesitate to reach out to us.
