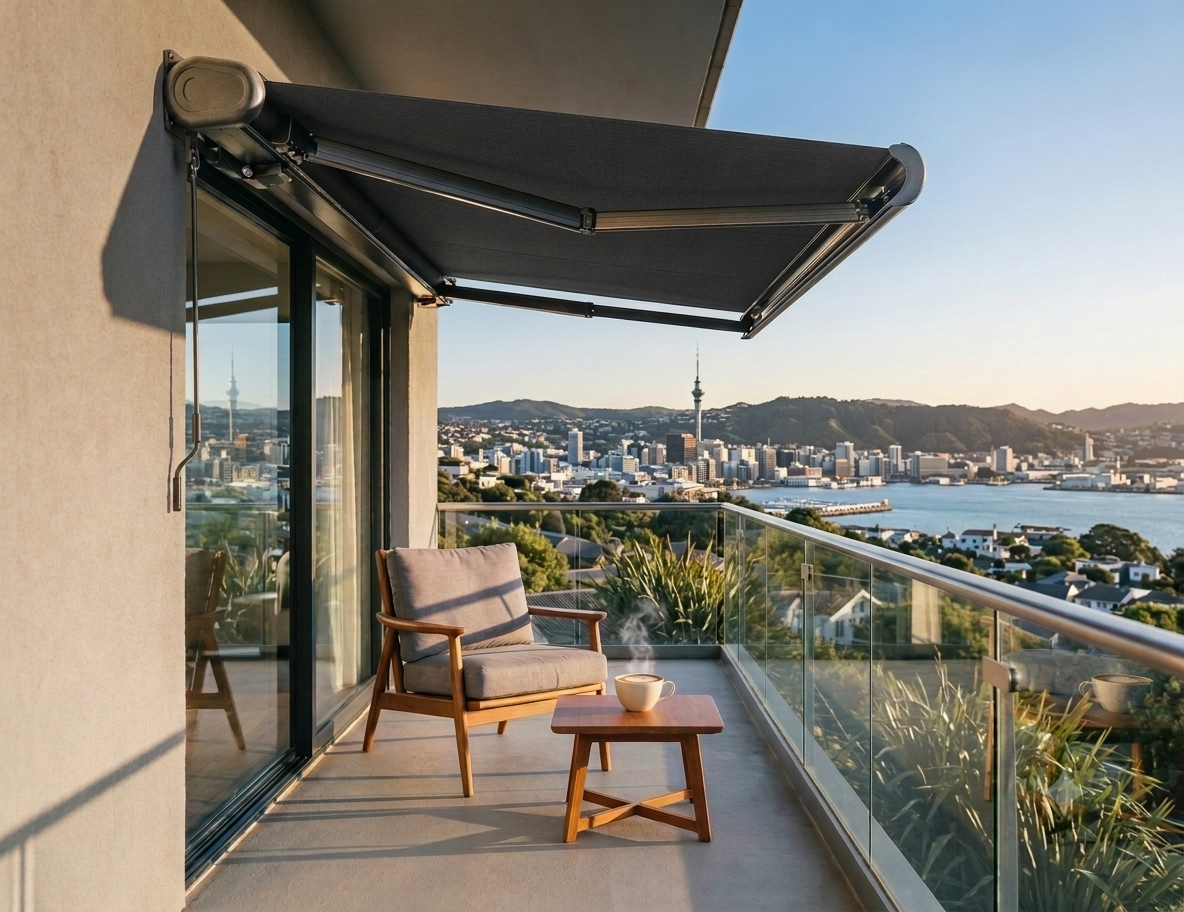

Shield your patio in style with the Rainier Full Cassette Motorised Retractable Awning. This modern awning combines robust sun protection with smart features to enhance your outdoor living experience. The fully enclosed cassette design protects the mechanism and fabric when retracted, while the premium Dickson® acrylic fabric blocks 99% of UV rays and withstands harsh weather conditions. Built-in LED lighting and optional smart climate controls let you enjoy your patio day or night, rain or shine.
Key Features:
- Full cassette enclosure protects fabric and mechanisms from weather damage
- Remote-controlled operation with manual override capability
- Integrated LED lighting with auto-shutoff when retracted
- Adjustable pitch (0-30 degrees) for optimal shade coverage
- Premium Dickson® acrylic fabric resists fading, mold, and stains
- Wind resistance up to 50 km/h
- Removable valance for flexible styling options
- Compatible with concrete, solid brick, or wood walls
- Warranty: 5 years (frame/motors), 10 years (fabric fade resistance)
Specifications:
-
Frame Colour: White / Dark Grey
- Canopy Colour: Dark Grey / Light Grey
-
Canopy Fabric: 100% Solution Dyed French Dickson®Acrylic Fabric(>280g/㎡)
-
Frame Material: Powder Coated 6063-T5 Aluminium + Steel Roller Tube
-
LED Strip: 3000K warm light with adjustable brightness levels
-
Lights: Built-in LED light system
-
Operation: Remote control and manual
-
Water Draining Front Beam
-
Awning Arm Dimensions: Small Arm: 52 x 28 x 2.5mm Big Arm: 61 x 33 x 3mm
-
Cassette Cover Dimensions: 175 x 155 x 2.5mm
-
Roller Tube Diameter: 80mm
-
Roller Tube Thickness: 1.2mm
-
Front Beam Dimensions: 120 x 64.8 x 2.8mm
- Wind resistance: Up to 50km/h
-
Motor Type: Wistar® Motor
-
Motor Waterproof Grade: IP44
-
Power: 230V / 50Hz
-
Power Cable: 1.5m
-
Hand Crank Length: 1.5m
-
Product Dimensions: 400 x 250cm/500 x 3000cm
- Net Weight: 4m x 2.5m, 68kg 5m x 3m, 84kg
- Packing: One package
- Packaging Dimensions + Weight: 4m x 2.5m Package: 445 x 28 x 22cm, 77kg 5m x 3m Package: 549 x 28 x 22cm, 95.5kg
*The hand crank and the motor's wiring are on the left side of the awning when you are facing it.
Package Contents:
- 1 x Full Cassette Retractable Awning
- 1 x Manual Crank
- 1 x Hand Crank Connector
- 1 x Motor Limit Adjusting Rod
- 1 x Remote Control
- 2 x Wall Brackets
- 8 x Expansion Bolts
- 8 x Lag Bolts
- 1 x Instruction Manual
Click to download: installation manual
Click to download: remote control recode manual
Click to download: awning fabric options brochure
Click to download: luxi living VS other brand -fabric roll comparison
Free Shipping Offer
Enjoy free shipping on orders over $500 to the following metro areas: Sunshine Coast, Brisbane, Gold Coast, Newcastle, Central Coast, Sydney Metro, Wollongong, Canberra, Melbourne Metro, Geelong, Adelaide, and Perth.
Offer Valid: Feb 15, 2025 – Feb 28, 2025
Dispatch & Delivery
-
Quick Dispatch:
In-stock items are processed and dispatched within 48 hours of payment confirmation (excluding weekends and public holidays). -
Estimated Delivery Times for In-Stock Items:
Metro Areas: 5–10 business days.
Regional Areas: 7–14 business days. -
Handling Special Items:
For bulky or heavy items, please ensure someone is available upon delivery to assist with unloading. Additional delivery assistance can be arranged if required (additional fees may apply).
Returns
We are committed to your satisfaction. We offer a full refund (including shipping) under the following conditions:
-
Defective Items:
If the item is found to be defective and cannot be repaired or replaced. -
Incorrect Descriptions:
If the item does not match the description provided on our website.
For full details, please learn more about our Return and Refund Policy.
Need Assistance?
- Live Chat: Get in touch with our team directly via live chat.
- Email: support@luxiliving.com.au
Pickup Melbourne Showroom – Free
-
Free In-Store Collection:
Collect your order for free at our Melbourne showroom. Please bring your confirmation email when you come to collect your order. Our team will contact you once your goods are ready. -
Pickup Location:
131-133 Keys Road
Moorabbin VIC 3189
Australia
We appreciate your trust in Luxi Living and are dedicated to providing a seamless shipping and returns experience throughout Australia!
Please bring your confirmation email when you come to collect your order.
*Our team will contact you once your goods are ready.
Pickup Location:
131-133 Keys Road
Moorabbin VIC 3189
Australia
At Luxi Living, we provide professional installation services for our retractable awnings. Our team of experienced installers ensures a seamless and hassle-free setup for our customers.
Regions Covered
Currently, our assembly service is available in the following regions:
- Brisbane
- Sydney
- Melbourne
We are continuously expanding our coverage area, so please check with our team for the latest updates on locations served.
Installation Fees
Manual Models
Sizes | Installation Fees |
3x2.5m | $700 |
4x2.5m | $750 |
5x3m | $800 |
Motorised Models
Sizes | Installation Fees |
3x2.5m | $800 |
4x2.5m | $900 |
5x3m | $1000 |
Scheduling Your Installation
To schedule an installation, we recommend that you contact our team as soon as possible. While we strive to provide timely service, please note that we may need to coordinate a few jobs together in order to optimize our resources and scheduling.
Our team will work with you to find the best available timeslot for your installation. We appreciate your understanding and cooperation in this process.
At luxiliving.com.au, we want to offer you the best shopping experience possible. We're here to help you in any way possible!
Generally all products at Lúxi have at least a 12 month warranty. You can check the warranty information of each item in the product description. Contact us within the warranty period if you encounter any problems associated with the product.
Luxi Living will replace your product if it is found to be “dead on arrival” (DOA) at our cost.
If you change your mind after the payment is confirmed, we will issue a store credit (lessany shipping and handling fees) and the item can be returned to us at your cost. Items must be returned in "as new" condition with all packaging and accessories (including manuals).
If your item is faulty, please contact us within the warrant period and we will assess your claim on a case-by-case basis and offer a replacement, full refund or store credit.
Compare Our Retractable Awnings
Explore our range of retractable awnings to find the perfect balance of protection, maintenance, and style. Whether you need basic functionality or maximum durability, we have options to suit your preferences.
Viewing

Viewing

Starting Price
$699
$1,499
$2,299
Available Sizes
3x2.5m, 4x2.5m
3x2.5m, 4x2.5m, 5x3m
4x2.5m, 5x3m
Wind Resistance
50 km/h
50 km/h
50 km/h
Operation Type
Manual
Electric + Manual
Electric + Manual
Built-in Bubble Level
Yes
Yes
No
LED Lighting
No
Yes
Yes
Fabric Protection
Exposed
Top covered, bottom exposed
All parts, including arms, enclosed
Maintenance Needs
More frequent
Moderate
Minimal
Aesthetic Appeal
Basic
Balanced
Clean and seamless
Easy & Effortless Operation
Effortless control with both remote and hand crank, ensuring reliable use even during power outages.


Sleek & Clean Aesthetics
Cassette design offers sleek aesthetics and full protection for your awning fabric and folding arms, keeping them safe from the elements and extending their lifespan.
Durable & Fade-Resistant Protection
Made with 100% French Dickson® Solution-Dyed Acrylic Fabric, offering superior UV protection (UV 80+ rated) for long-lasting color, keeping your awning looking vibrant for years.


Smart Climate Control
Automatic weather sensors extend the awning when needed, reducing indoor temperatures by blocking direct sunlight. This natural cooling helps lower air conditioning costs and energy consumption.
Integrated Lighting
Built-in LED lights with adjustable brightness enhance your outdoor space after sunset. The lights automatically power off when the awning retracts, combining convenience with energy efficiency.
