Pacific Motorised Wall Mounted Louvre Roof
SKU: CS21141-10
Enjoy outdoor living at its finest with the Pacific Motorised Wall Mounted pergola
A motorised pergola is a perfect solution for backyard shade, whether you’re entertaining or relaxing. Designed to allow for shade when you need it, protection from the elements or refreshing airflow, the Pacific pergola is remote-controlled for your convenience.
The Pacific pergola is strong and durable due to its powder-coated aluminium construction and double-layer louvres. Ideal for by the coast or on the farm, the all-weather resistant pergola is specially designed for the Australia climate, withstanding sun, wind, rain and snow.
Elevate your outdoor lifestyle with our motorised louvre pergola, a fusion of craftsmanship and innovative engineering. From intimate gatherings to tranquil solo moments, this pergola promises to be your ultimate outdoor retreat. Don't just enhance your space; redefine it with our premium offering. Choose excellence, choose durability, choose a motorised louvre pergola that's designed to make your outdoor dreams a reality.
For important on our installation options, please get in touch with our team today via email at support@luxiliving.com.au Our experienced team offer a range of install options nationwide. This is an excellent option to guarantee the professional quality and performance of your pergola.
"NB: Actual Sizes may differ from those in title - please check line drawings carefully"
Features:
- Modern and simple style with timeless appeal
- No need to open the louvre when it's raining or snowing.

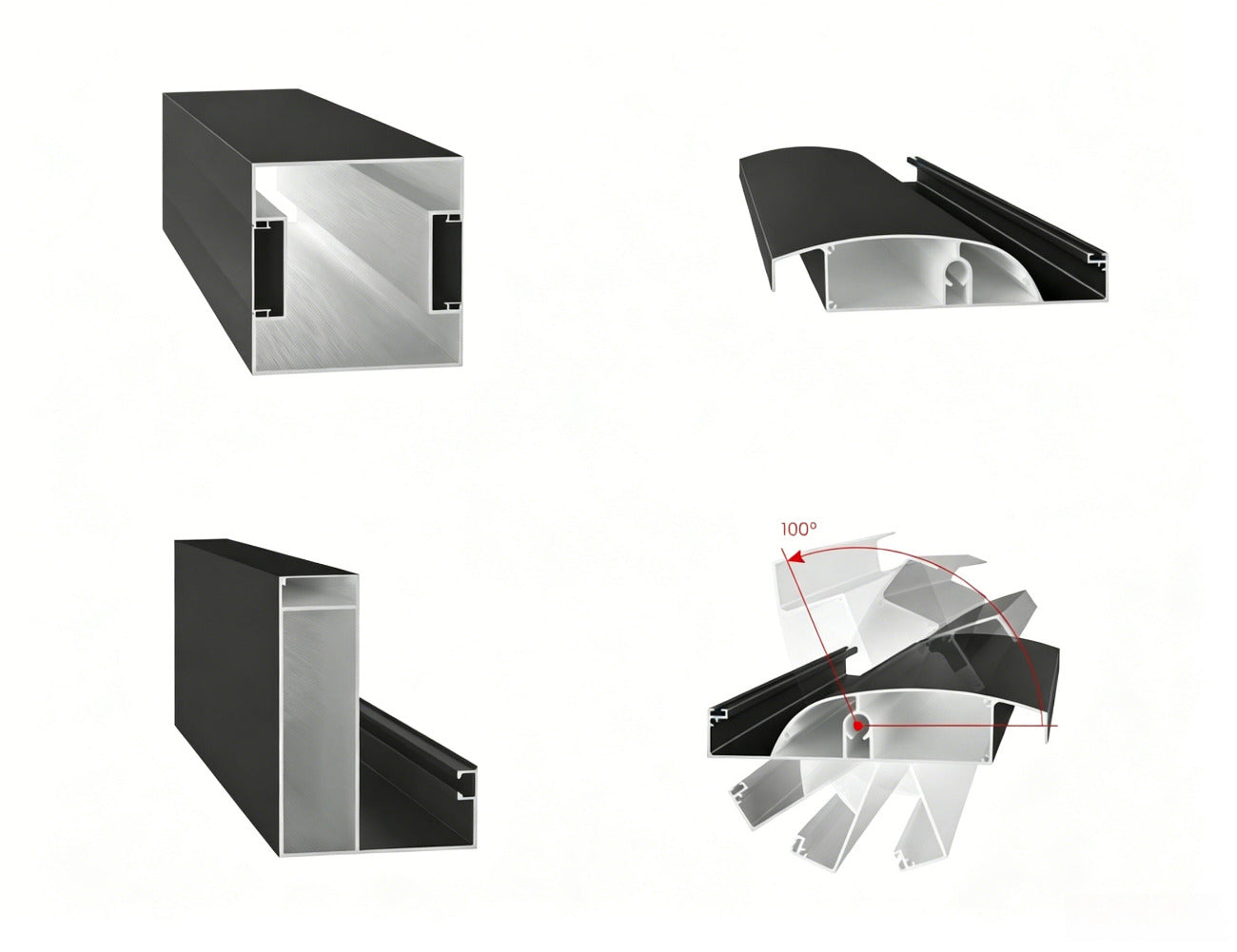

- The frame structure is made of 6063-T6 aluminium alloy, which is bend resistant and never rusts
- Coated with internationally renowned brand AkzoNobel powder: strong adhesion, high colour fastness, and weather resistant
- The column and the sink beam are quick to assemble and sturdy
- Unique blade structure design: water tight, and can withstand extreme weather
- Standard two-colour blade light strip (3000K warm light + 6000K white light), stepless dimming, with dimming memory function
- The blades can be rotated and opened at any angle within 0 to 100 degrees
- Allow at least 10cm clearance above the frame for when louvres are fully open
- Height with blades open 2984mm
Specifications:?
- Colour: Black / Charcoal / White / Frame Charcoal+Louvre White
- Material: Aluminium alloy 6063-T6
- Blades: 200 x 40 x 2mm
- Beam with Gutters: 210 x 150 x 3mm
- Posts: 150 x 150 x 3mm
- Finish: AKZO Powder Coated
- Motor: Grade IP67
- Light: 3000K warm light+6000k white light, stepless dimming
- Tilt Range: 100 Degrees
- Wind resistance: 170 - 220km/h
- Snow Load: 110 - 310KG/㎡ (56 - 80cm) thickness
- Packaging Material: Carton
- 10-year warranty on structure and 3-year warranty on electric motors
Package Contents:
- 1 x Pacific Motorised Wall Mounted Louvre Roof Aluminium Pergola
- 1 x Instruction Manual?
| 4 x 3.8m | 5 x 3.8m | 6 x 3.8m | |
| LED Stripe | 4pcs | 5pcs | 6pcs |
| Gross Weight | 380kg | 420KG | 542kg |
| Package 1 | 393.3 x 28.5 x 24.6cm,53kg | 493.3 x 28.5 x 24.6cm,58.38kg | 593.3 x 28.5 x 24.6cm,63.56kg |
| Package 2 | 393.3 x 28.5 x 24.6cm,53kg | 493.3 x 28.5 x 24.6cm,59.7kg | 593.3 x 28.5 x 24.6cm,64.88kg |
| Package 3 | 371.7 x 26.3 x 32cm, 62.71kg | 371.7 x 26.3 x 32cm, 62.71kg | 371.7 x 26.3 x 32cm, 62.71kg |
| Package 4 | 371.7 x 26.3 x 32cm, 62.71kg | 371.7 x 26.3 x 32cm, 62.71kg | 371.7 x 26.3 x 32cm, 62.71kg |
| Package 5 | 371.7 x 26.3 x 32cm, 62.71kg | 371.7 x 26.3 x 32cm, 62.71kg | 371.7 x 26.3 x 32cm, 62.71kg |
| Package 6 | 371.7 x 26.3 x 22.5cm, 31.59kg | 371.7 x 26.3 x 32cm, 62.71kg | 371.7 x 26.3 x 32cm, 62.71kg |
| Package 7 | 273.5 x 36 x 17cm, 28.3kg | 371.7 x 26.3 x 14cm, 21kg | 371.7 x 26.3 x 32cm, 62.71kg |
| Package 8 | 46.5 x 24.5 x 33.5cm, 5kg | 273.5 x 36 x 17cm, 28.3kg | 371.7 x 26.3 x 14cm, 21kg |
| Package 9 | 46.5 x 24.5 x 33.5cm, 5kg | 46.5 x 24.5 x 33.5cm, 5kg | 273.5 x 36 x 17cm, 28.3kg |
| Package 10 | 46.5 x 24.5 x 33.5cm, 15kg | 46.5 x 24.5 x 33.5cm, 5kg | 46.5 x 24.5 x 33.5cm, 5kg |
| Package 11 | 46.5 x 24.5 x 33.5cm, 15kg | 46.5 x 24.5 x 33.5cm, 5kg | |
| Package 12 | 46.5 x 24.5 x 33.5cm, 15kg |
*NOTE: Install must be on a suitable substrate surface. We recommend seeking professional advice before installation. Please ensure professional installation of your louvre system. For your safety, please do not make any alterations to the system - any adjustments will void your warranty.
Warranty Exclusions:
The warranty does not cover changes, fading or damage caused by extreme weather conditions (including severely heavy rain or wind, heat from BBQs and heaters). The warranty also does not cover damage caused by misuse, accident or negligence. Installation instructions MUST be followed closely as damage caused by not following the instructions voids your warranty.
Warranty covers domestic use only and excludes commercial use.
At Luxi Living, we provide professional installation services for our high-quality louvred pergolas. Our team of experienced installers ensures a seamless and hassle-free setup for our customers.
Regions Covered
Currently, our assembly service is available in the following regions:
- Brisbane
- Sydney
- Melbourne
We are continuously expanding our coverage area, so please check with our team for the latest updates on locations served.
Scheduling Your Installation
To schedule an installation, we recommend that you contact our team as soon as possible. While we strive to provide timely service, please note that we may need to coordinate a few jobs together in order to optimize our resources and scheduling.
Our team will work with you to find the best available timeslot for your installation. We appreciate your understanding and cooperation in this process.
Assembly Fees
The fees for our assembly service are based on the size and complexity of the louvred pergola you have purchased. Please contact our team to receive a personalised quote for your installation needs. The table below provides a general guide, but your final cost may vary depending on your specific requirements.
| Pergola Size (Width x Depth) | Assembly Fee |
|---|---|
| 2m x 2m, 2.5m x 2.5m, 3m x 2m, 3m x 3m | $1,000.00 |
| 4m x 2m, 4m x 3m, 4m x 3.6m, 4m x 4m | $1,200.00 |
| 5m x 3m, 5m x 2m, 5m x 4m | $1,400.00 |
| 6m x 2m, 6m x 3m, 6m x 4m | $1,600.00 |
| 7m x 2m, 7m x 3m, 7m x 4m | $1,800.00 |
| 8m x 3m, 8m x 3.6m, 8m x 4m | $2,000.00 |
| Custom Size | TBD |
| Finding Joist / Concrete Pad - each post | $200.00 |
| Concrete pad levelling issue - each post | $200.00 |
| Concrete pad levelling issue shutter / glass doors - each side | $300.00 |
| Installing Facia/Soffit brackets - each | $50.00 |
| Flashing / m | $75.00 |
| Electrician Required / hour |
$200.00 |
Assembly Fees for Accessories
| Accessory | Assembly Fee |
|---|---|
| Louvre Blinds | $300.00 |
| Shutter Wall / Privacy Screens | $300.00 |
| Shutter / Glass Sliding Doors (2m, 2.5m, 3m, 3.5m, 3.6m) | $500.00 |
| Shutter / Glass Sliding Doors (4m, 5m, 6m) | $700.00 |
Please note that for some locations, additional travel costs may apply. We encourage you to contact our team to get a personalised quote for your installation needs.
Our team is committed to providing a seamless and professional installation experience. If you have any questions or would like to schedule an installation, please don't hesitate to reach out to us.
Delivery Areas
We ship pergolas nationwide across Australia.
Shipping Costs
Metro Areas:
- Victoria (VIC): $399
- New South Wales (NSW): $499
- Queensland (QLD): $599
- Other States/Territories: Please contact us for a quote
Regional and Rural Areas:
For regional and rural areas, please contact us before placing your order for a shipping quote.
Shipping Time Estimates
- Metro areas: 5-10 business days
- Regional areas: 7-14 business days
Please note: It may take up to 10 working days from the date of payment for your item to be dispatched. Items will not be dispatched until payment has been received in full.
Factors Affecting Shipping Times:
Shipping times are estimates and can be affected by factors such as weather conditions, peak seasons, and unexpected delays.
Order Tracking
From the moment you place your order to the day it arrives at your doorstep, we keep you informed every step of the way. Track Your Order ->
Delivery Service
- Standard Delivery: One delivery person, front door delivery only （Please ensure at least two people are available to assist with unloading upon delivery）
- Optional Extra Delivery Person: Available for an additional fee (contact us to arrange)
Packaging
All pergola components are carefully packaged for safe transportation.
Returns
Returns for In-Stock Pergolas
You may return an in-stock pergola within 30 days of the delivery date for a full store credit less the shipping, provided the pergola is unused, unassembled, and in its original packaging.
Returns for Pre-Order and Custom Pergolas
Due to their customized nature, pre-order and custom pergolas are non-refundable.
Damaged or Missing Parts
Reporting Damage:
If you notice any damage or missing parts upon delivery:
- Note the damage on the driver's delivery paperwork before signing for acceptance.
- Take clear photos of the damage, including any damage to the packaging.
- Contact us within 24 hours of receiving the shipment.
Replacement Parts:
We will promptly ship replacement parts for any damaged or missing items at no cost to you.
Full Refund Policy
We will provide a full refund (including shipping) if:
- The faulty item is found to be defective and we are unable to fix or replace it.
- The item was incorrectly described in the website listing.
For more information, please refer to our detailed Return and Refund Policy.
Contact Us
If you have any questions, please contact us at 1800 418 419 or support@luxiliving.com.au
Please bring your confirmation email when you come to collect your order.
*Our team will contact you once your goods are ready.
Pickup Location:
131-133 Keys Road
Moorabbin VIC 3189
Australia
Transform Your Outdoor Space
Create unforgettable moments under your louvred pergola. From family gatherings to peaceful retreats, enjoy perfect shade and comfort in every season.
See in action
Why Choose Us：
4-Season Ready
Rainproof Design
High Wind Resistance
Easy, Simple Installation
Why Choose Us：
4-Season Ready
Tailor the space to your desired level of enclosure, privacy, and weather protection.
4-Season Ready
Tailor the space to your desired level of enclosure, privacy, and weather protection.
Why Choose Us：
Rainproof Design
Built-in drainage channels prevent leaks, ensuring a dry environment during rainfall.
Rainproof Design
Built-in drainage channels prevent leaks, ensuring a dry environment during rainfall.
Why Choose Us：
High Wind Resistance
Engineered to withstand winds up to 220 km/h, providing superior stability and safety.
High Wind Resistance
Engineered to withstand winds up to 220 km/h, providing superior stability and safety.
Why Choose Us：
Easy, Simple Installation
With pre-engineered and pre-drilled components, our pergola kits are designed for easy assembly
Easy, Simple Installation
With pre-engineered and pre-drilled components, our pergola kits are designed for easy assembly
Pergola Accessories
Create a bespoke outdoor space that suits your style and needs.
Retractable Side Blind
Shutter Wall
Glass Sliding Door
Shutter Sliding Door
Tongue and Groove Privacy Screen
Slatted Privacy Wall
Patterned Privacy Panel
Retractable Side Blind
Add privacy and shelter with our spring-loaded mesh side blinds. Perfect for blocking wind, rain, and bugs.
Shutter Wall
Help create both a private and protected outdoor living space. The blade can be opened and closed.
Glass Sliding Door
Designed to shield against the elements, they transform your pergola into a protected haven, ensuring year-round enjoyment of your outdoor space.
Shutter Sliding Door
Shutter sliding doors transform your pergola into a more versatile space. Use it as an open-air relaxation area, or close the shutters and it becomes an enclosed room.
Tongue and Groove Privacy Screen
The tight, seamless interlocking design effectively blocks visibility, ensuring a private, secluded space within the pergola area.
Slatted Privacy Wall
Slatted Privacy Wall offer an excellent solution for added privacy in your outdoor spaces, shielding from prying eyes without sacrificing natural light or air circulation.
Patterned Privacy Panel
Features laser cut detailing to add an element of style to your space
Create a bespoke outdoor space that suits your style and needs.
