Rainier Full Cassette Motorised Retractable Awning
SKU: CS21708
Shield your patio in style with the Rainier Full Cassette Motorised Retractable Awning. This modern awning combines robust sun protection with smart features to enhance your outdoor living experience. The fully enclosed cassette design protects the mechanism and fabric when retracted, while the premium Dickson® acrylic fabric blocks 99% of UV rays and withstands harsh weather conditions. Built-in LED lighting and optional smart climate controls let you enjoy your patio day or night, rain or shine.
Key Features:
- Full cassette enclosure protects fabric and mechanisms from weather damage
- Remote-controlled operation with manual override capability
- Integrated LED lighting with auto-shutoff when retracted
- Adjustable pitch (0-30 degrees) for optimal shade coverage
- Premium Dickson® acrylic fabric resists fading, mold, and stains
- Wind resistance up to 50 km/h
- Removable valance for flexible styling options
- Compatible with concrete, solid brick, or wood walls
- Warranty: 5 years (frame/motors), 10 years (fabric fade resistance)
Specifications:
-
Frame Colour: White / Dark Grey
- Canopy Colour: Dark Grey / Light Grey
-
Canopy Fabric: 100% Solution Dyed French Dickson®Acrylic Fabric(>280g/㎡)
-
Frame Material: Powder Coated 6063-T5 Aluminium + Steel Roller Tube
-
LED Strip: 3000K warm light with adjustable brightness levels
-
Lights: Built-in LED light system
-
Operation: Remote control and manual
-
Water Draining Front Beam
-
Awning Arm Dimensions: Small Arm: 52 x 28 x 2.5mm Big Arm: 61 x 33 x 3mm
-
Cassette Cover Dimensions: 175 x 155 x 2.5mm
-
Roller Tube Diameter: 80mm
-
Roller Tube Thickness: 1.2mm
-
Front Beam Dimensions: 120 x 64.8 x 2.8mm
- Wind resistance: Up to 50km/h
-
Motor Type: Wistar® Motor
-
Motor Waterproof Grade: IP44
-
Power: 230V / 50Hz
-
Power Cable: 1.5m
-
Hand Crank Length: 1.5m
-

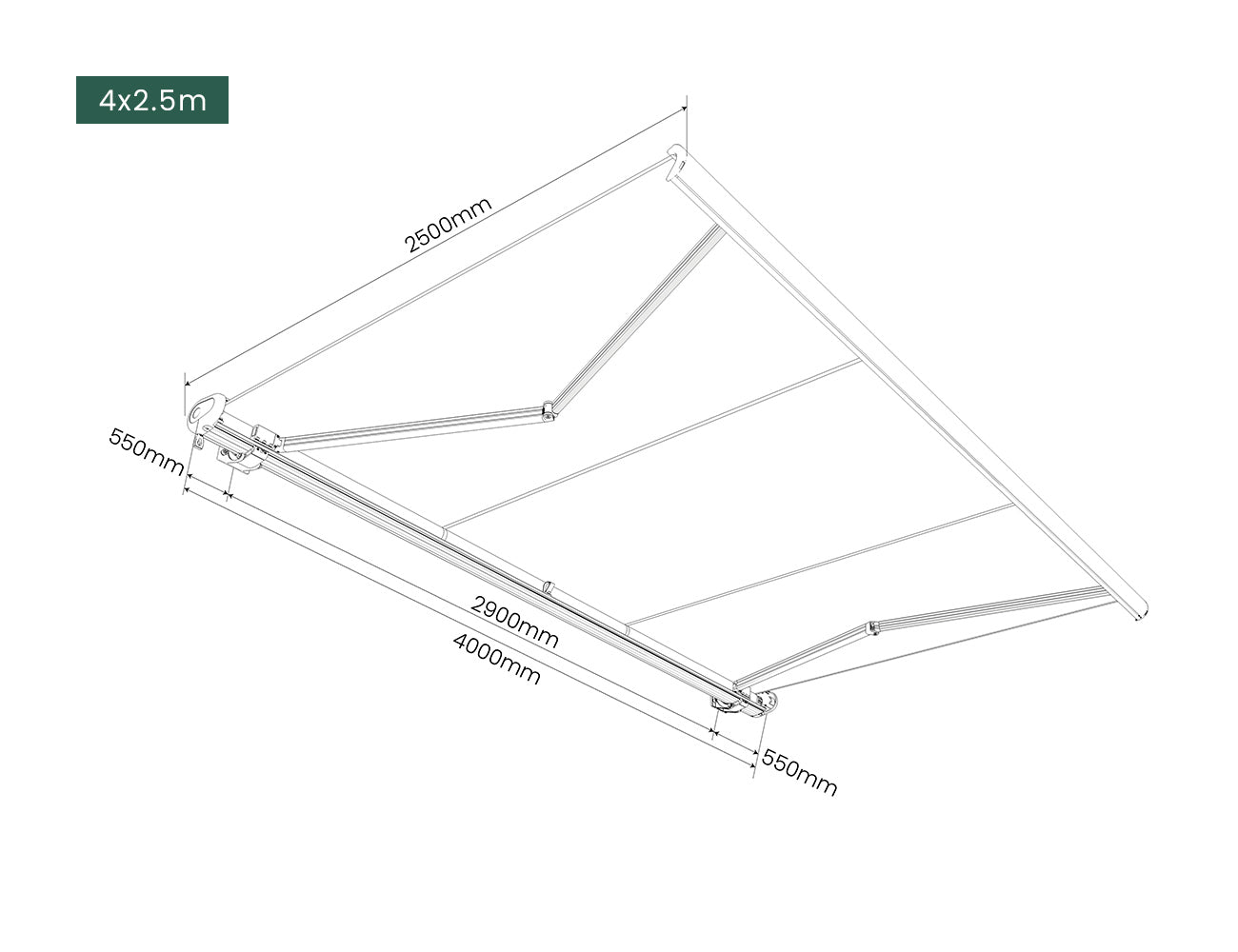

Product Dimensions: 400 x 250cm/500 x 3000cm
- Net Weight: 4m x 2.5m, 68kg 5m x 3m, 84kg
- Packing: One package
- Packaging Dimensions + Weight: 4m x 2.5m Package: 445 x 28 x 22cm, 77kg 5m x 3m Package: 549 x 28 x 22cm, 95.5kg

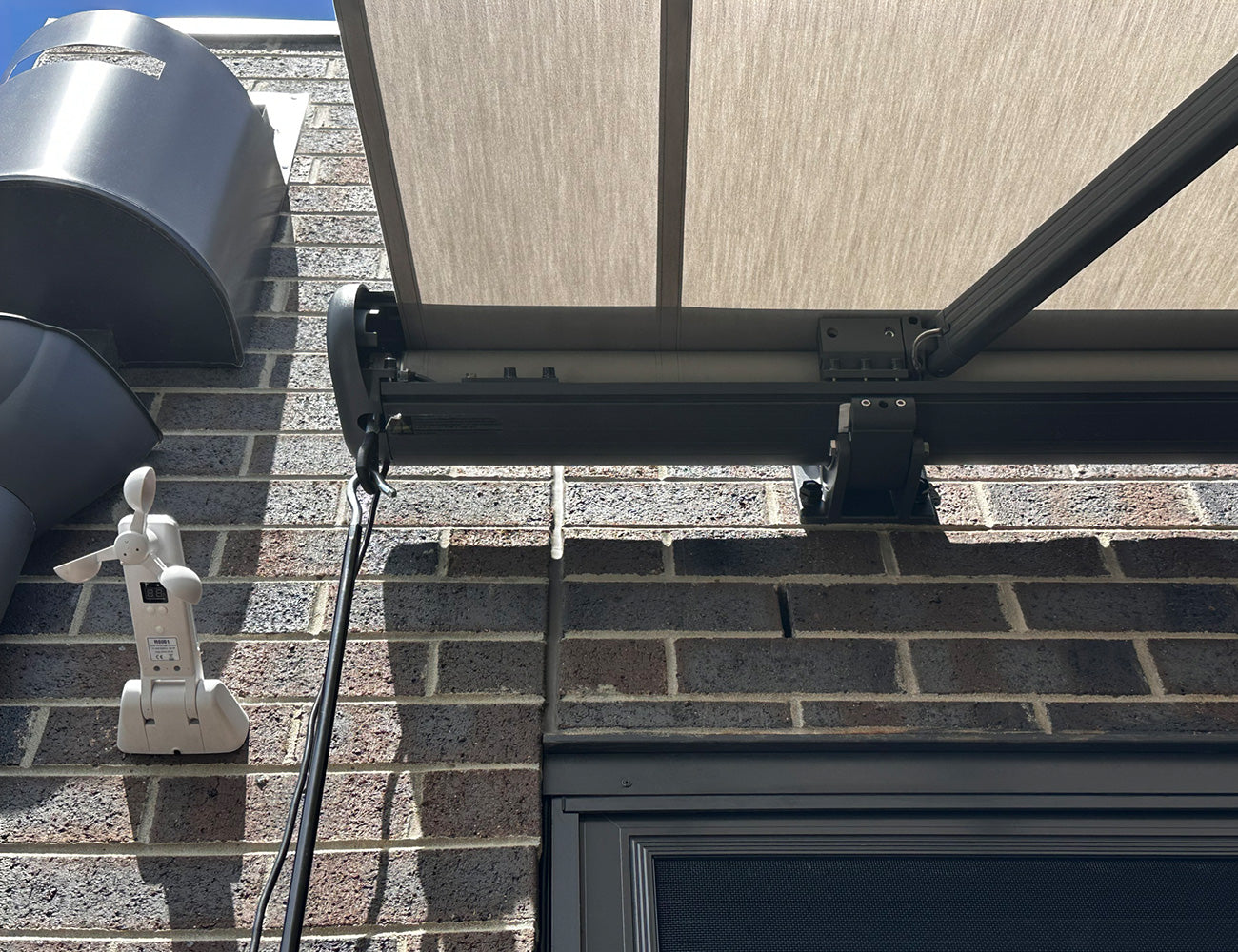

*The hand crank and the motor's wiring are on the left side of the awning when you are facing it.
Package Contents:
- 1 x Full Cassette Retractable Awning
- 1 x Manual Crank
- 1 x Hand Crank Connector
- 1 x Motor Limit Adjusting Rod
- 1 x Remote Control

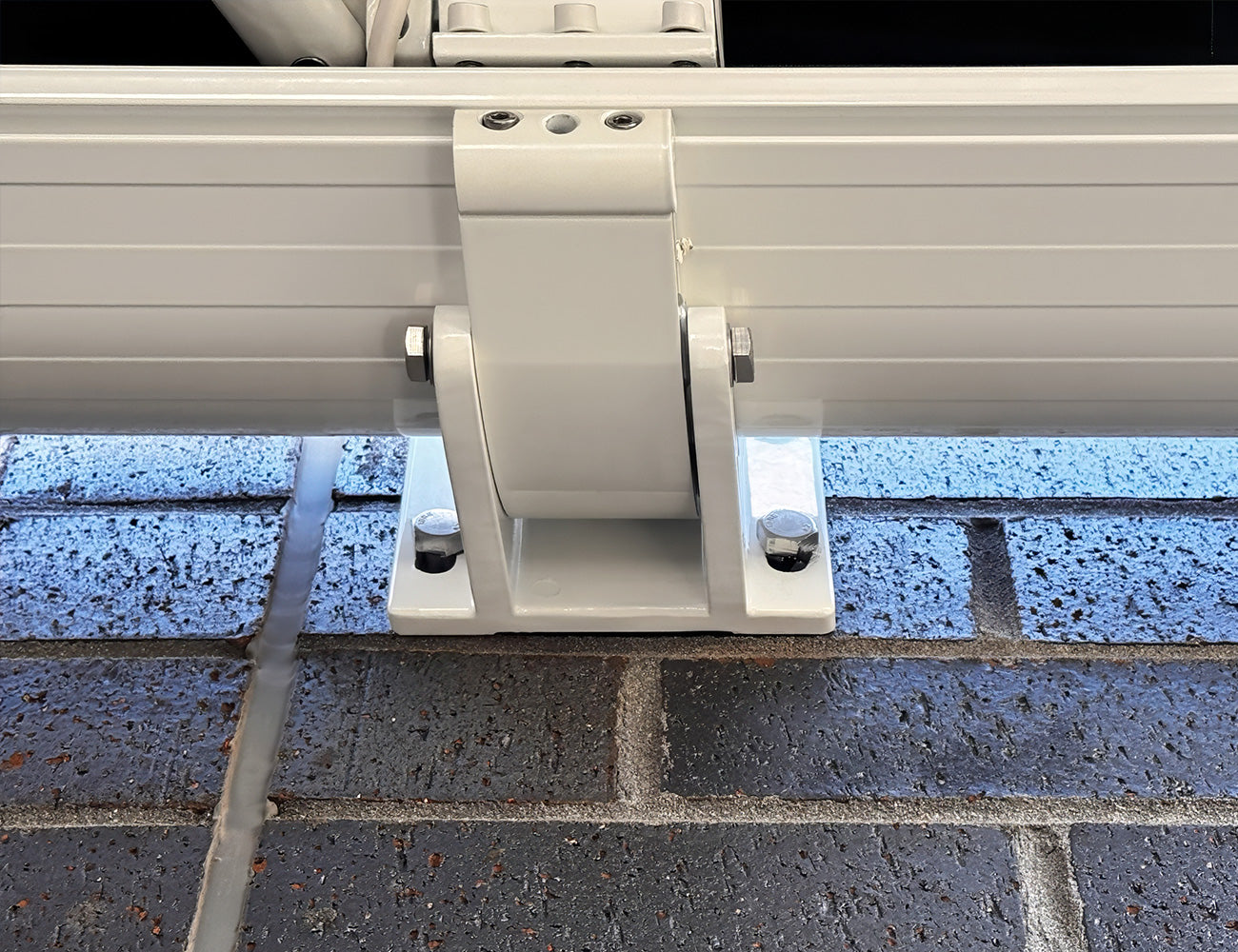

- 2 x Wall Brackets
- 8 x Expansion Bolts
- 8 x Lag Bolts
- 1 x Instruction Manual
Click to download: installation manual
Click to download: remote control recode manual
Click to download: awning fabric options brochure
Click to download: luxi living VS other brand -fabric roll comparison
Luxi Living always aims to dispatch your item as soon as possible. Please note items will not be dispatched until payment has been received in full.
Estimated delivery times will be displayed at the time of checkout.
Returns
We will provide a full refund (including shipping) if:
- The faulty item is found to be defective and we are unable to fix or replace it
- The item was incorrectly described in website listing
Learn more about our Return and Refund Policy
If you have any Questions or Concerns
-Live chat with us
-Email us at support@luxiliving.com.au
Please bring your confirmation email when you come to collect your order.
*Our team will contact you once your goods are ready.
Pickup Location:
131-133 Keys Road
Moorabbin VIC 3189
Australia
At luxiliving.com.au, we want to offer you the best shopping experience possible. We're here to help you in any way possible!
Generally all products at Lúxi have at least a 12 month warranty. You can check the warranty information of each item in the product description. Contact us within the warranty period if you encounter any problems associated with the product.
Luxi Living will replace your product if it is found to be “dead on arrival” (DOA) at our cost.
If you change your mind after the payment is confirmed, we will issue a store credit (lessany shipping and handling fees) and the item can be returned to us at your cost. Items must be returned in "as new" condition with all packaging and accessories (including manuals).
If your item is faulty, please contact us within the warrant period and we will assess your claim on a case-by-case basis and offer a replacement, full refund or store credit.
Compare Our Retractable Awnings
Explore our range of retractable awnings to find the perfect balance of protection, maintenance, and style. Whether you need basic functionality or maximum durability, we have options to suit your preferences.
Viewing
Viewing
Starting Price
$699
$1,499
$2,299
Available Sizes
3x2.5m, 4x2.5m
3x2.5m, 4x2.5m, 5x3m
4x2.5m, 5x3m
Wind Resistance
50 km/h
50 km/h
50 km/h
Operation Type
Manual
Electric + Manual
Electric + Manual
Built-in Bubble Level
Yes
Yes
No
LED Lighting
No
Yes
Yes
Fabric Protection
Exposed
Top covered, bottom exposed
All parts, including arms, enclosed
Maintenance Needs
More frequent
Moderate
Minimal
Aesthetic Appeal
Basic
Balanced
Clean and seamless
Easy & Effortless Operation
Effortless control with both remote and hand crank, ensuring reliable use even during power outages.
Sleek & Clean Aesthetics
Cassette design offers sleek aesthetics and full protection for your awning fabric and folding arms, keeping them safe from the elements and extending their lifespan.
Durable & Fade-Resistant Protection
Made with 100% French Dickson® Solution-Dyed Acrylic Fabric, offering superior UV protection (UV 80+ rated) for long-lasting color, keeping your awning looking vibrant for years.
Smart Climate Control
Automatic weather sensors extend the awning when needed, reducing indoor temperatures by blocking direct sunlight. This natural cooling helps lower air conditioning costs and energy consumption.
Integrated Lighting
Built-in LED lights with adjustable brightness enhance your outdoor space after sunset. The lights automatically power off when the awning retracts, combining convenience with energy efficiency.
