Complete your Luxi Living Pergola with a frame sliding glass door.
The glass door is an ideal choice for providing extra protection against the rain and cold, or to keep bugs out at night. It also helps keep the heat in on cooler evenings. Plus, the 10mm tempered glass panels help ensure your views won’t be spoiled.
With all the same structural characteristics used to construct our Luxi Living Pergola systems, the glass sliding doors are durable and resistant to water and corrosion. The powder-coated aluminium track easily attaches to the lower legs of the Pergola structure to ease the sliding motion and tension of your structure. The doors are easy to slide open and close using the flush handle.
Adding a sophisticated touch to your Pergola setup, the glass doors slide smoothly to enclose or expand your outdoor living space. Specially designed to be securely fitted to the Caribbean & Atlantic Freestanding Pergola systems, it’s the finishing touch you never knew you needed.
For more important on our installation options, please get in touch with our team today. We are happy to assemble for you. This is an excellent option as it guarantees you professional quality, using our experienced Teams.
NB:Attention: 3m glass door is suitable for 5.9x3m、5.9x4m pergola,4m glass door is suitable for 7.9x3.6m pergola.
Features:
- Allows your view clear and uninterrupted
- Provides protection against rain and cold
- Help keep insects out and heat in
- Flush handles to assist in opening and closing
- 10mm Tempered Glass
- Aluminium track for smooth sliding
- Track attaches to structures legs for added support
- Resistant to water and corrosion
- Wind resistance: 57km/h
- 5-year warranty
Specifications:
- Colour: Black / Charcoal / White Frame + 10mm Glass
- Frame Material: Aluminium alloy 6063-T5
- Glass Material: 10mm Tempered Glass
- Top Track Thickness: 1.4mm
- Bottom Track Thickness: 1.8mm
- Frame Thickness: 1.2mm
- Door Leaf Profile Thickness: 3.0mm
- Pieces: 3x Tracks, 3x Panels/Doors
- Pieces: 2x Tracks, 4x Panels/Doors

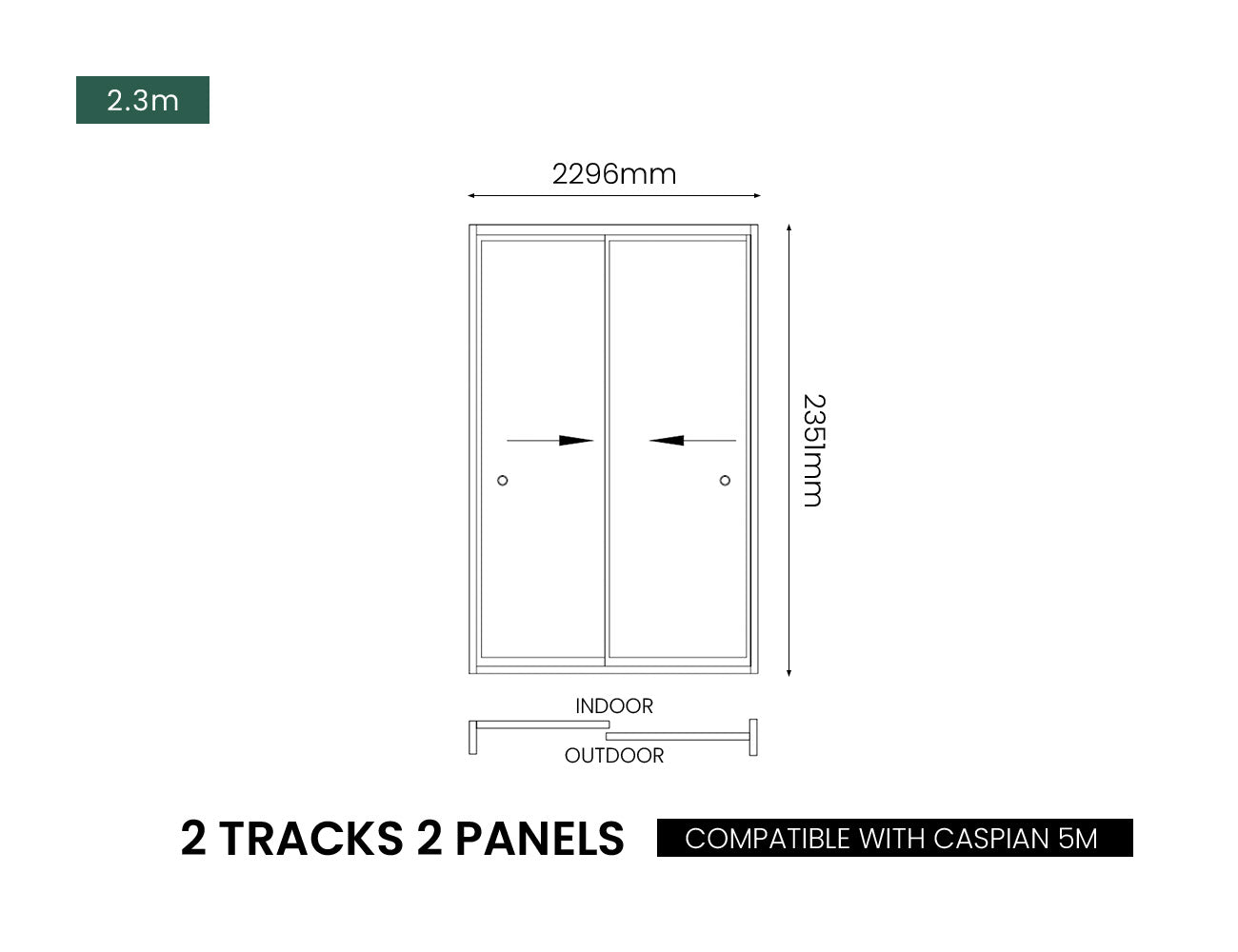

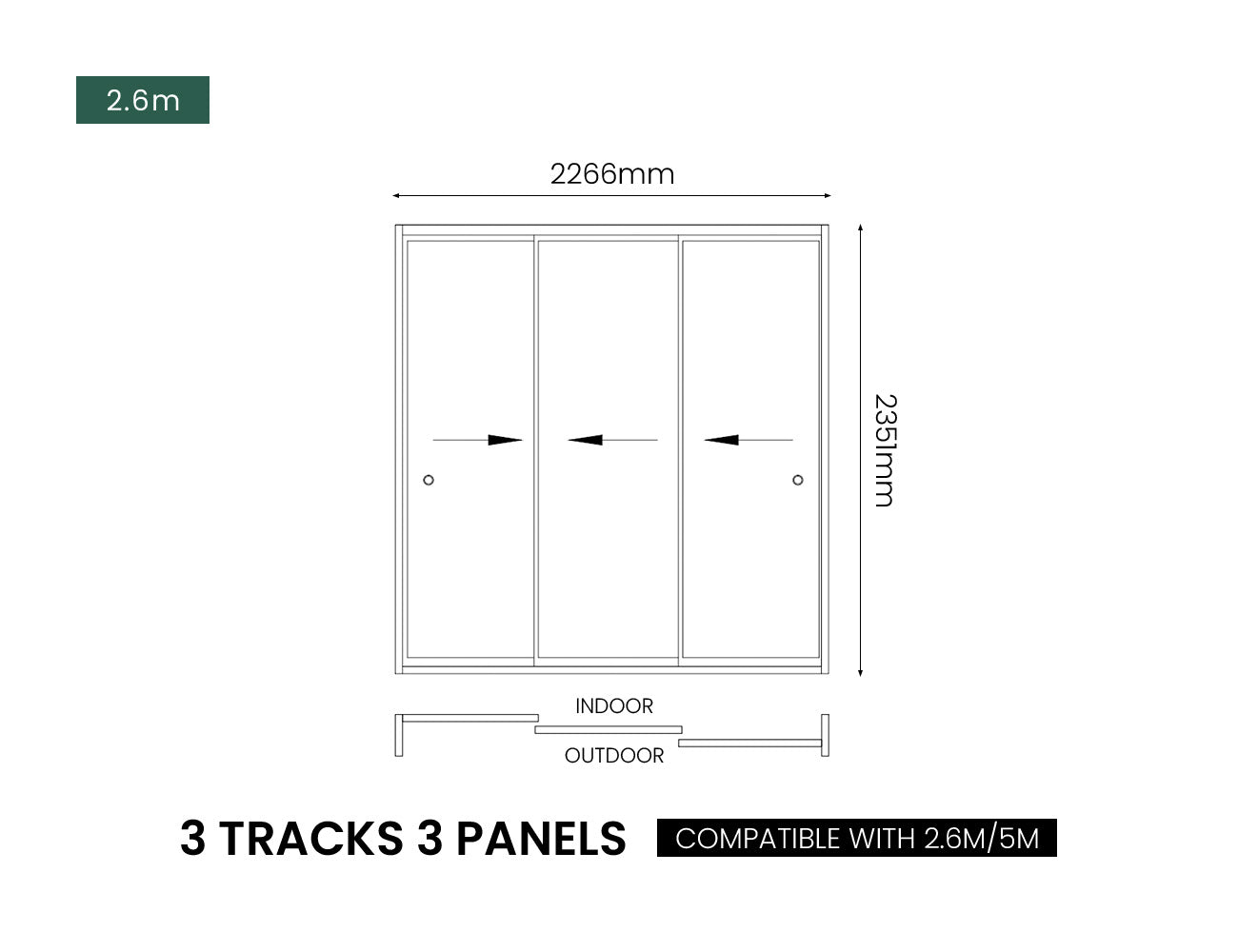

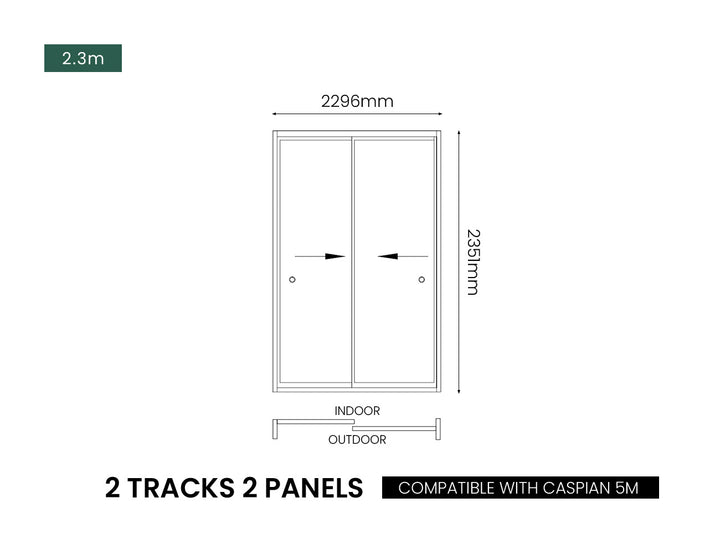

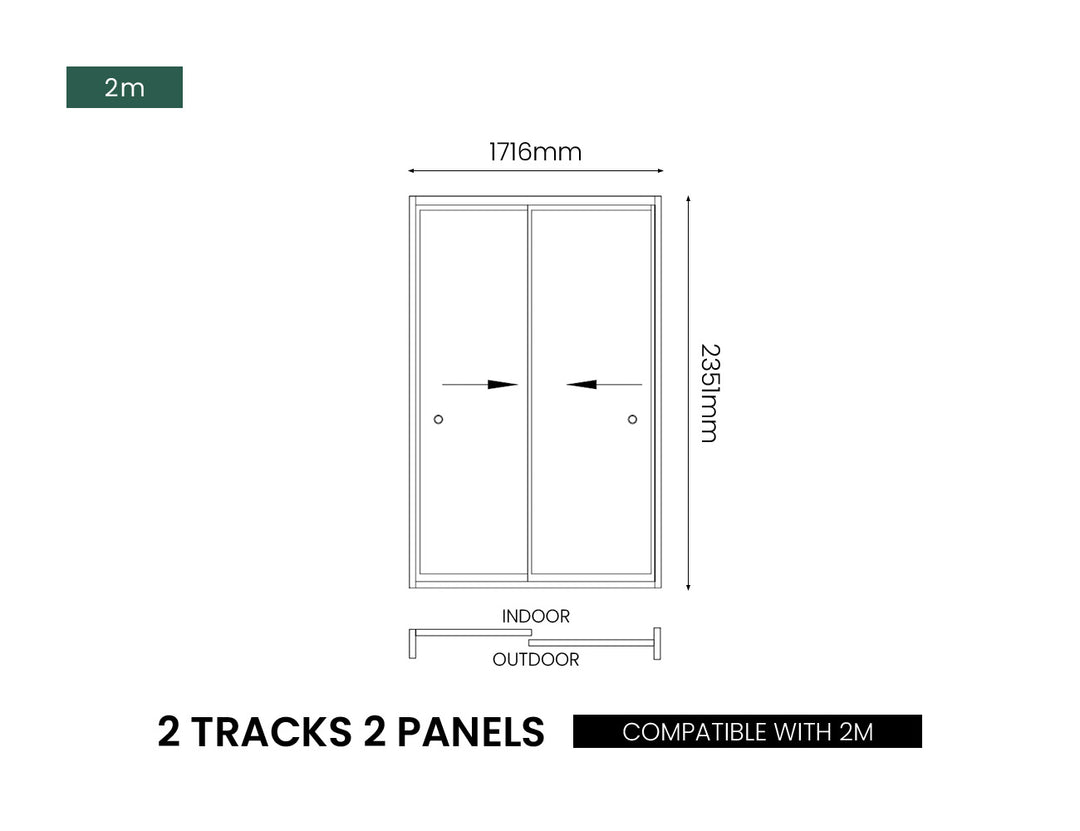

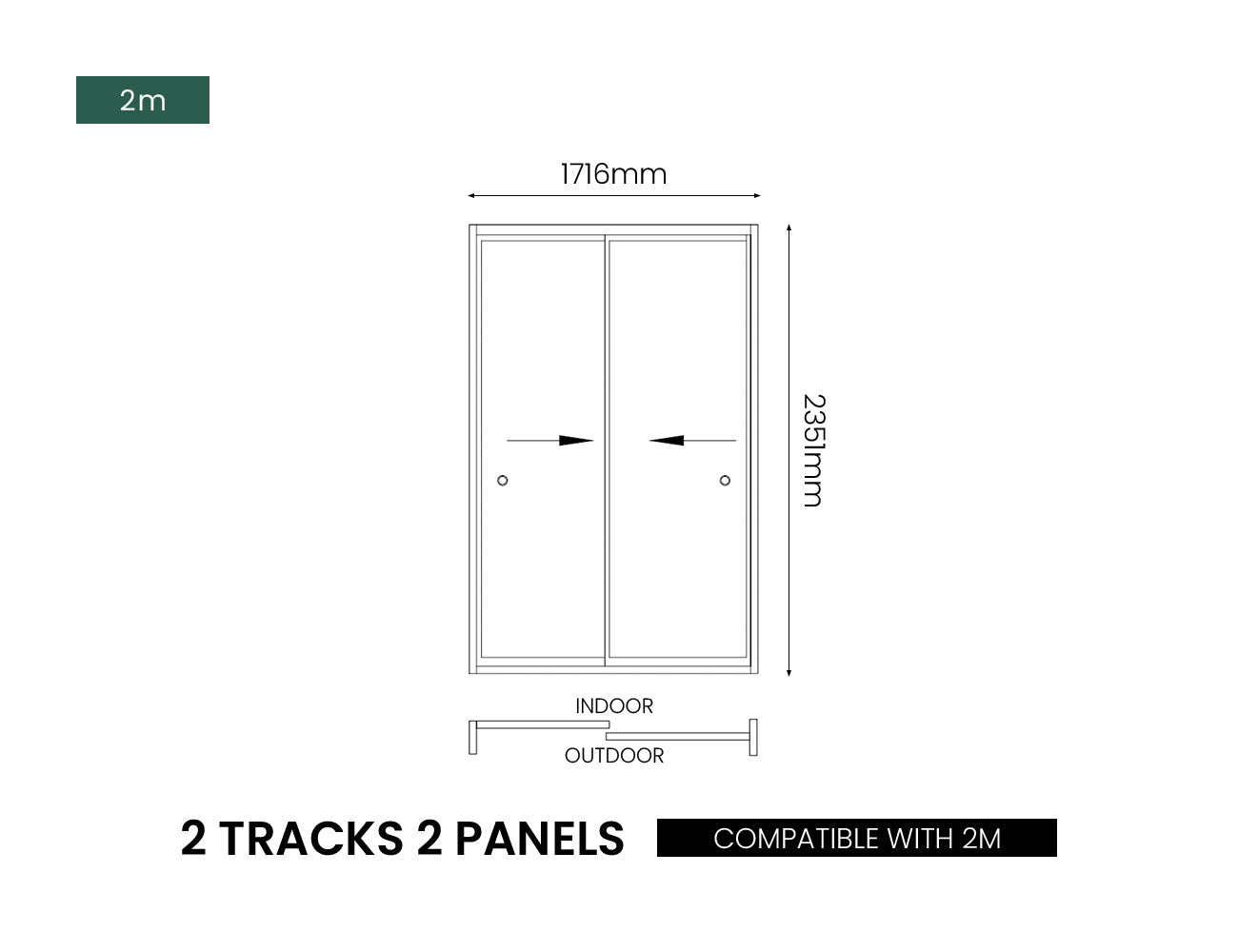

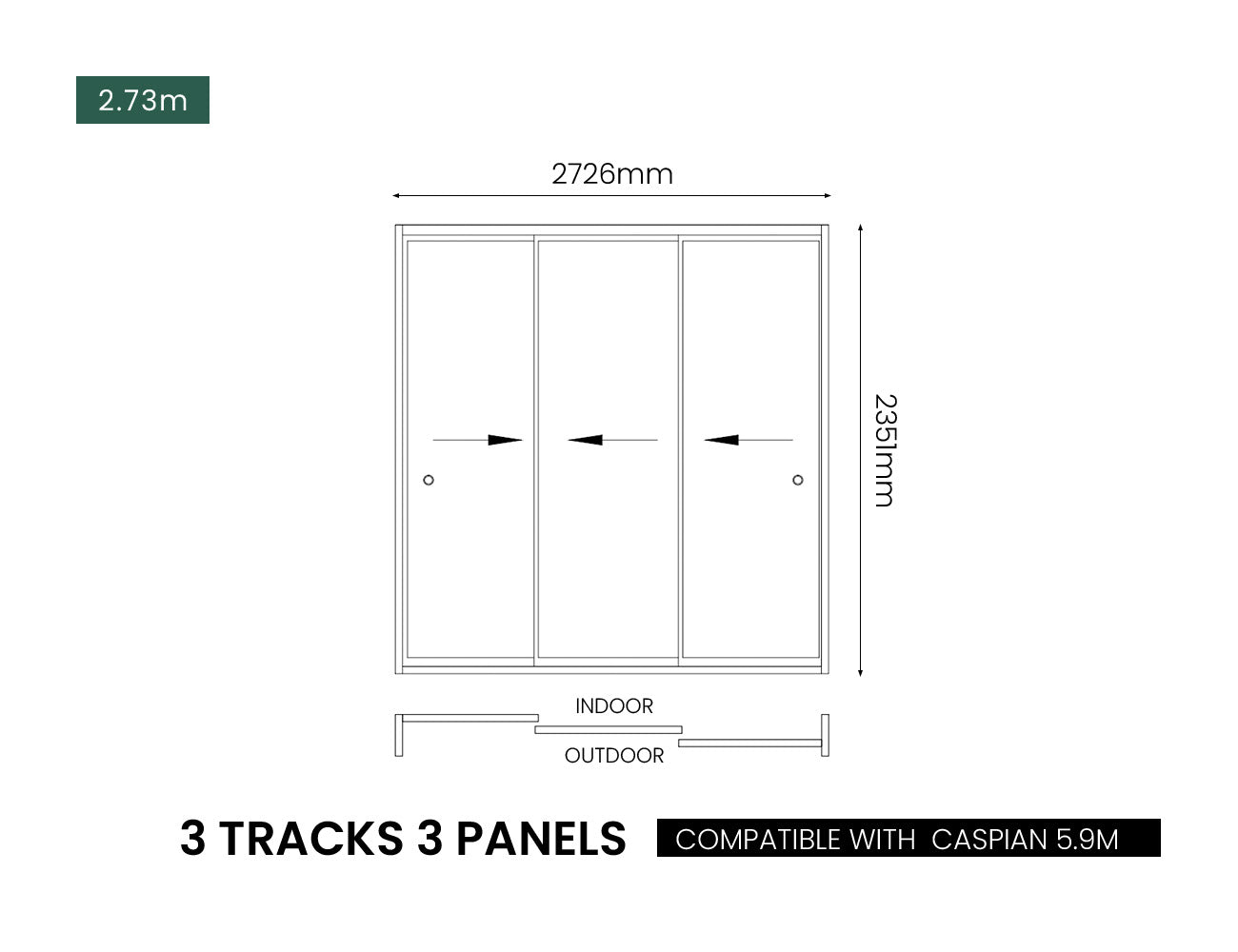

- Product Dimensions (W x H): 2.5m - 2286x2350.5mm
- Product Dimensions (W x H): 3m - 2696x2350.5mm
- Product Dimensions (W x H): 3.5m - 3286x2350.5mm
- Product Dimensions (W x H): 3.6m - 3296x2350.5mm
- Product Dimensions (W x H): 4m - 3696x2350.5mm
- Packing: 2 Packages/Set
Package Contents:
- 1x Pergola Glass Sliding Door
- 1x Instruction Manual
Click to download: installation manual
Door Size | 2.5m | 3m | 3.5m | 3.6m | 4m |
Suitable pergola Size | 5-metre sides of the 5x4m pergola | 3-metre sides of the 3x3m、4x3m、5.9x3m pergola,5.9-metre sides of the 5.9x3m、5.9x4m pergola | 7-metre sides of the 7x4m pergola | 3.6-metre sides of the 7.9x3.6m pergola |
4-metre sides of the 4x3m、4x4m、5x4m、5.9x4m、7x4m pergola,7.9-metre sides of the 7.9x3.6m pergola
|
Pieces | 3x Tracks, 3x Panels/Doors | 3x Tracks, 3x Panels/Doors | 2x Tracks, 4x Panels/Doors | 2x Tracks, 4x Panels/Doors | 2x Tracks, 4x Panels/Doors |
Package 1 | 237 x 81 x 16cm,204kg | 237 x 95.5 x 16cm,228kg | 237 x 64 x 25cm,266kg | 237 x 64 x 25cm,267kg | 237 x 68.8 x 25cm,288.45kg |
Package 2 | 242 x 19.5 x 14cm,14.25kg | 276.6 x 19.5 x 10.4cm,15.69kg | 335.6 x 19.5 x 14cm,17.75kg | 336.6 x 19.5 x 14cm,17.78kg | 376.6 x 19.5 x 14cm,19.18kg |
